Enterprise

Exporter

서버와 레디스 모니터링에 필요한 데이터를 수집하는 node_exporter와 redis_exporter에 대해서 설명합니다.

Node Exporter는 리눅스 서버의 하드웨어 및 OS 관련 메트릭을 수집해 Prometheus 형식으로 노출하는 Exporter입니다.
Redis Exporter는 Redis 인스턴스에서 메트릭을 수집하여 Prometheus 형식으로 노출하는 Exporter입니다. Redis 자체는 Prometheus와 직접 통신할 수 없기 때문에 중간다리 역할을 합니다.
데이터 흐름: Exporter ➡ Prometheus ➡ Grafana

Node Exporter

1. 📌 개요 📖

Node Exporter는 리눅스 서버의 하드웨어 및 OS 관련 메트릭을 수집해 Prometheus 형식으로 노출하는 Exporter입니다.
프로그래밍 언어: Go(Golang)
기본 포트: 9100

2. 📦 주요 수집 항목

CPU: node_cpu_seconds_total
Memory: node_memory_MemAvailable_bytes, node_memory_MemFree_bytes
Disk: node_disk_read_bytes_total, node_disk_written_bytes_total
File System: node_filesystem_avail_bytes, node_filesystem_size_bytes
Network: node_network_receive_bytes_total, node_network_transmit_bytes_total
Load Average: node_load1(1분), node_load5(5분), node_load15(15분)
Uptime: node_time_seconds, node_boot_time_seconds

3. ⚙️ 다운로드(설치), 실행

📥 다운로드(설치) - Node Exporter Release 확인

$ cd /app
$ mkdir exporter && cd exporter
$ wget https://github.com/prometheus/node_exporter/releases/latest/download/node_exporter-1.9.1.linux-amd64.tar.gz -> 12M
$ tar -xvzf node_exporter-1.9.1.linux-amd64.tar.gz -> 압축 풀기
$ mv node_exporter-1.9.1.linux-amd64 node_exporter-1.9.1
$ ll node_exporter-1.9.1 -> 실행 파일: node_exporter (크기: 22M)
$ ln -s node_exporter-1.9.1/node_exporter node_exporter
-> 링크 만들기: 다른 버전을 받으면 링크만 수정한다. 시스템 서비스 등록은 수정하지 않는다.

실행(임시)

$ ./node_exporter & -> bg start (Ctrl+C 종료)
[1] 7752
time=2025-05-19 level=INFO source=node_exporter.go:216 msg="Starting node_exporter" version="(version=1.9.1, ...)"
time=2025-05-19 level=INFO source=tls_config.go:347 msg="Listening on" address=[::]:9100

🖥️ 시스템 서비스 등록

sudo vi /usr/lib/systemd/system/node_exporter.service -> CentOS [Unit] Description=Node Exporter After=network.target [Service] ExecStart=/app/exporter/node_exporter [Install] WantedBy=default.target
sudo systemctl daemon-reload -> 설정 reload
sudo systemctl start node_exporter -> 시작(실행)
sudo systemctl enable node_exporter -> 재부팅 시 자동 시작 등록
sudo systemctl stop node_exporter -> 중지(shutdown)
sudo systemctl status node_exporter -> 상태 보기

⚓ 9100 포트 허용

sudo vi /etc/sysconfig/iptables -> 아래 내용 저장
-A INPUT -p tcp -m state --state NEW -m tcp --dport 9100 -j ACCEPT
sudo systemctl restart iptables
sudo iptables -L -n | grep 9100 -> iptables 설정 확인
target prot opt source destination
ACCEPT tcp -- 0.0.0.0/0 0.0.0.0/0 state NEW tcp dpt:9100
sudo netstat -tulnp | grep 9100 -> netstat 확인
tcp6 0 0 :::9100 :::* LISTEN 7752/node_exporter
포트 관련 추가로 필요한 설정이 있으면 해주세요.

🌐 브라우저 테스트

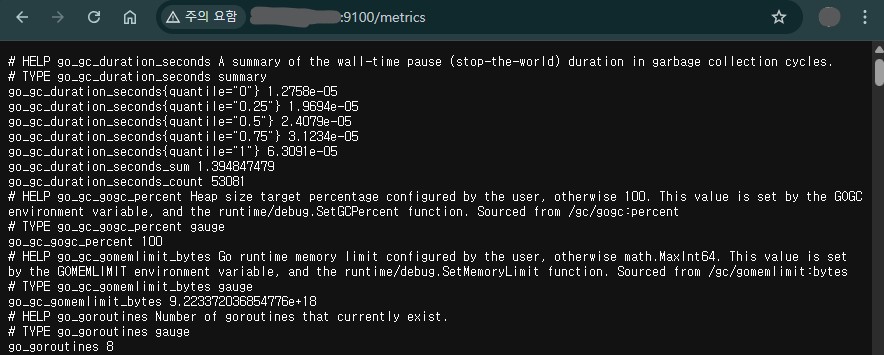

http://IP:9100/metrics -> 결과 이미지

100KBytes, 약 1600라인(매우 많은 자료가 나옴) ➡ 전체 데이터는 아래 참조

Redis Exporter

1. 📌 개요 📖

Redis Exporter는 Redis 인스턴스에서 메트릭을 수집하여 Prometheus 형식으로 노출하는 Exporter입니다.
Redis 자체는 Prometheus와 직접 통신할 수 없기 때문에 중간다리 역할을 합니다.
프로그래밍 언어: Go(Golang)
기본 포트: 9121

2. 📦 주요 수집 항목

연결 정보: redis_connected_clients, redis_connected_slaves
명령 처리: redis_commands_processed_total
메모리 사용: redis_memory_used_bytes, redis_memory_peak_bytes
Keyspace: redis_db_keys, redis_db_keys_expiring
퍼시스턴스: redis_rdb_changes_since_last_save, redis_aof_enabled
복제 상태: redis_master_last_io_seconds_ago
서버 정보: redis_uptime_in_seconds, redis_version_info

3. ⚙️ 다운로드(설치), 실행

📥 다운로드(설치) - Redis Exporter Release 확인

$ cd /app/exporter
$ wget https://github.com/oliver006/redis_exporter/releases/latest/download/redis_exporter-v1.72.1.linux-amd64.tar.gz -> 3.7M
$ tar -xvzf redis_exporter-v1.72.1.linux-amd64.tar.gz
$ mv redis_exporter-v1.72.1.linux-amd64 redis_exporter-v1.72.1
$ ll redis_exporter-v1.72.1 -> 실행 파일: redis_exporter (크기: 9.2M)
$ ln -s redis_exporter-v1.72.1/redis_exporter redis_exporter
-> 링크 만들기: 다른 버전을 받으면 링크만 수정한다. 시스템 서비스 등록은 수정하지 않는다.

🖥️ 시스템 서비스 등록

sudo vi /usr/lib/systemd/system/redis_exporter.service -> CentOS [Unit] Description=Redis Exporter After=network.target [Service] ExecStart=/app/exporter/redis_exporter \ --redis.addr=redis://127.0.0.1:6379 \ --redis.user=default \ --redis.password=password [Install] WantedBy=default.target
sudo systemctl daemon-reload -> 설정 reload
sudo systemctl start redis_exporter -> 시작(실행)
sudo systemctl enable redis_exporter -> 재부팅 시 자동 시작 등록
sudo systemctl stop redis_exporter -> 중지(shutdown)
sudo systemctl status redis_exporter -> 상태 보기

⚓ 9121 포트 허용

sudo vi /etc/sysconfig/iptables -> 아래 내용 저장
-A INPUT -p tcp -m state --state NEW -m tcp --dport 9121 -j ACCEPT
sudo systemctl restart iptables
sudo iptables -L -n | grep 9121 -> iptables 설정 확인
target prot opt source destination
ACCEPT tcp -- 0.0.0.0/0 0.0.0.0/0 state NEW tcp dpt:9121
sudo netstat -tulnp | grep 9121 -> netstat 확인
tcp6 0 0 :::9121 :::* LISTEN 29865/redis_exporter
포트 관련 추가로 필요한 설정이 있으면 해주세요.

Redis Exporter가 실행하는 명령

• Redis Exporter가 Redis 서버에 실행하는 명령입니다.
• prometheus.yml scrape_interval: 5s 간격마다 실행합니다.

AUTH redisgate -> 접속
CLIENT SETNAME redis_exporter -> 클라이언트 이름 설정
CONFIG GET * -> config 파라미터 전체를 가져옴: data size: 6.3K, 170 lines
INFO ALL -> info 전체 데이터를 가져옴: data size: 7.2K, 230 lines
LATENCY LATEST -> Latency 데이터를 가져옴
LATENCY HISTOGRAM
SLOWLOG LEN -> Sloglog 데이터를 가져옴
SLOWLOG GET 1

🌐 브라우저 테스트

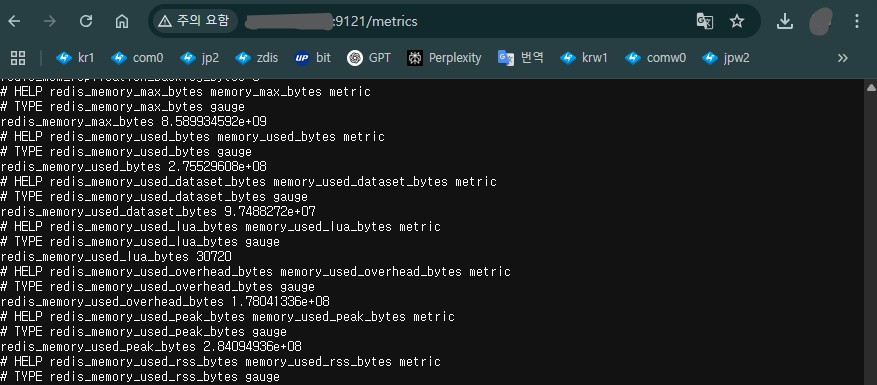

http://IP:9121/metrics -> 결과 이미지

36K, 670라인 ➡ 전체 데이터는 아래 참조

Node Exporter 전체 데이터 📖

http://IP:9100/metrics 실행했을 때 나오는 데이터입니다.
Node Exporter 전체 데이터: 100K, 약 1600라인.

# HELP go_gc_duration_seconds A summary of the wall-time pause (stop-the-world) duration in garbage collection cycles. # TYPE go_gc_duration_seconds summary go_gc_duration_seconds{quantile="0"} 1.1912e-05 go_gc_duration_seconds{quantile="0.25"} 2.1767e-05 go_gc_duration_seconds{quantile="0.5"} 2.6489e-05 go_gc_duration_seconds{quantile="0.75"} 2.844e-05 go_gc_duration_seconds{quantile="1"} 6.6789e-05 go_gc_duration_seconds_sum 1.3394497 go_gc_duration_seconds_count 50960 # HELP go_gc_gogc_percent Heap size target percentage configured by the user, otherwise 100. This value is set by the GOGC environment variable, and the runtime/debug.SetGCPercent function. Sourced from /gc/gogc:percent # TYPE go_gc_gogc_percent gauge go_gc_gogc_percent 100 # HELP go_gc_gomemlimit_bytes Go runtime memory limit configured by the user, otherwise math.MaxInt64. This value is set by the GOMEMLIMIT environment variable, and the runtime/debug.SetMemoryLimit function. Sourced from /gc/gomemlimit:bytes # TYPE go_gc_gomemlimit_bytes gauge go_gc_gomemlimit_bytes 9.223372036854776e+18 # HELP go_goroutines Number of goroutines that currently exist. # TYPE go_goroutines gauge go_goroutines 8 # HELP go_info Information about the Go environment. # TYPE go_info gauge go_info{version="go1.23.7"} 1 # HELP go_memstats_alloc_bytes Number of bytes allocated in heap and currently in use. Equals to /memory/classes/heap/objects:bytes. # TYPE go_memstats_alloc_bytes gauge go_memstats_alloc_bytes 2.585896e+06 # HELP go_memstats_alloc_bytes_total Total number of bytes allocated in heap until now, even if released already. Equals to /gc/heap/allocs:bytes. # TYPE go_memstats_alloc_bytes_total counter go_memstats_alloc_bytes_total 9.4543226416e+10 # HELP go_memstats_buck_hash_sys_bytes Number of bytes used by the profiling bucket hash table. Equals to /memory/classes/profiling/buckets:bytes. # TYPE go_memstats_buck_hash_sys_bytes gauge go_memstats_buck_hash_sys_bytes 2.17316e+06 # HELP go_memstats_frees_total Total number of heap objects frees. Equals to /gc/heap/frees:objects + /gc/heap/tiny/allocs:objects. # TYPE go_memstats_frees_total counter go_memstats_frees_total 1.031232375e+09 # HELP go_memstats_gc_sys_bytes Number of bytes used for garbage collection system metadata. Equals to /memory/classes/metadata/other:bytes. # TYPE go_memstats_gc_sys_bytes gauge go_memstats_gc_sys_bytes 3.24772e+06 # HELP go_memstats_heap_alloc_bytes Number of heap bytes allocated and currently in use, same as go_memstats_alloc_bytes. Equals to /memory/classes/heap/objects:bytes. # TYPE go_memstats_heap_alloc_bytes gauge go_memstats_heap_alloc_bytes 2.585896e+06 # HELP go_memstats_heap_idle_bytes Number of heap bytes waiting to be used. Equals to /memory/classes/heap/released:bytes + /memory/classes/heap/free:bytes. # TYPE go_memstats_heap_idle_bytes gauge go_memstats_heap_idle_bytes 3.612672e+06 # HELP go_memstats_heap_inuse_bytes Number of heap bytes that are in use. Equals to /memory/classes/heap/objects:bytes + /memory/classes/heap/unused:bytes # TYPE go_memstats_heap_inuse_bytes gauge go_memstats_heap_inuse_bytes 4.268032e+06 # HELP go_memstats_heap_objects Number of currently allocated objects. Equals to /gc/heap/objects:objects. # TYPE go_memstats_heap_objects gauge go_memstats_heap_objects 16718 # HELP go_memstats_heap_released_bytes Number of heap bytes released to OS. Equals to /memory/classes/heap/released:bytes. # TYPE go_memstats_heap_released_bytes gauge go_memstats_heap_released_bytes 2.269184e+06 # HELP go_memstats_heap_sys_bytes Number of heap bytes obtained from system. Equals to /memory/classes/heap/objects:bytes + /memory/classes/heap/unused:bytes + /memory/classes/heap/released:bytes + /memory/classes/heap/free:bytes. # TYPE go_memstats_heap_sys_bytes gauge go_memstats_heap_sys_bytes 7.880704e+06 # HELP go_memstats_last_gc_time_seconds Number of seconds since 1970 of last garbage collection. # TYPE go_memstats_last_gc_time_seconds gauge go_memstats_last_gc_time_seconds 1.7477794301183143e+09 # HELP go_memstats_mallocs_total Total number of heap objects allocated, both live and gc-ed. Semantically a counter version for go_memstats_heap_objects gauge. Equals to /gc/heap/allocs:objects + /gc/heap/tiny/allocs:objects. # TYPE go_memstats_mallocs_total counter go_memstats_mallocs_total 1.031249093e+09 # HELP go_memstats_mcache_inuse_bytes Number of bytes in use by mcache structures. Equals to /memory/classes/metadata/mcache/inuse:bytes. # TYPE go_memstats_mcache_inuse_bytes gauge go_memstats_mcache_inuse_bytes 1200 # HELP go_memstats_mcache_sys_bytes Number of bytes used for mcache structures obtained from system. Equals to /memory/classes/metadata/mcache/inuse:bytes + /memory/classes/metadata/mcache/free:bytes. # TYPE go_memstats_mcache_sys_bytes gauge go_memstats_mcache_sys_bytes 15600 # HELP go_memstats_mspan_inuse_bytes Number of bytes in use by mspan structures. Equals to /memory/classes/metadata/mspan/inuse:bytes. # TYPE go_memstats_mspan_inuse_bytes gauge go_memstats_mspan_inuse_bytes 72800 # HELP go_memstats_mspan_sys_bytes Number of bytes used for mspan structures obtained from system. Equals to /memory/classes/metadata/mspan/inuse:bytes + /memory/classes/metadata/mspan/free:bytes. # TYPE go_memstats_mspan_sys_bytes gauge go_memstats_mspan_sys_bytes 97920 # HELP go_memstats_next_gc_bytes Number of heap bytes when next garbage collection will take place. Equals to /gc/heap/goal:bytes. # TYPE go_memstats_next_gc_bytes gauge go_memstats_next_gc_bytes 5.03736e+06 # HELP go_memstats_other_sys_bytes Number of bytes used for other system allocations. Equals to /memory/classes/other:bytes. # TYPE go_memstats_other_sys_bytes gauge go_memstats_other_sys_bytes 860744 # HELP go_memstats_stack_inuse_bytes Number of bytes obtained from system for stack allocator in non-CGO environments. Equals to /memory/classes/heap/stacks:bytes. # TYPE go_memstats_stack_inuse_bytes gauge go_memstats_stack_inuse_bytes 491520 # HELP go_memstats_stack_sys_bytes Number of bytes obtained from system for stack allocator. Equals to /memory/classes/heap/stacks:bytes + /memory/classes/os-stacks:bytes. # TYPE go_memstats_stack_sys_bytes gauge go_memstats_stack_sys_bytes 491520 # HELP go_memstats_sys_bytes Number of bytes obtained from system. Equals to /memory/classes/total:byte. # TYPE go_memstats_sys_bytes gauge go_memstats_sys_bytes 1.4767368e+07 # HELP go_sched_gomaxprocs_threads The current runtime.GOMAXPROCS setting, or the number of operating system threads that can execute user-level Go code simultaneously. Sourced from /sched/gomaxprocs:threads # TYPE go_sched_gomaxprocs_threads gauge go_sched_gomaxprocs_threads 1 # HELP go_threads Number of OS threads created. # TYPE go_threads gauge go_threads 5 # HELP node_arp_entries ARP entries by device # TYPE node_arp_entries gauge node_arp_entries{device="docker0"} 10 node_arp_entries{device="em1"} 5 # HELP node_boot_time_seconds Node boot time, in unixtime. # TYPE node_boot_time_seconds gauge node_boot_time_seconds 1.610550046e+09 # HELP node_context_switches_total Total number of context switches. # TYPE node_context_switches_total counter node_context_switches_total 1.00301120734e+11 # HELP node_cooling_device_cur_state Current throttle state of the cooling device # TYPE node_cooling_device_cur_state gauge node_cooling_device_cur_state{name="0",type="Processor"} 0 node_cooling_device_cur_state{name="1",type="Processor"} 0 node_cooling_device_cur_state{name="2",type="Processor"} 0 node_cooling_device_cur_state{name="3",type="Processor"} 0 node_cooling_device_cur_state{name="4",type="Processor"} 0 node_cooling_device_cur_state{name="5",type="Processor"} 0 node_cooling_device_cur_state{name="6",type="Processor"} 0 node_cooling_device_cur_state{name="7",type="Processor"} 0 node_cooling_device_cur_state{name="8",type="intel_powerclamp"} -1 # HELP node_cooling_device_max_state Maximum throttle state of the cooling device # TYPE node_cooling_device_max_state gauge node_cooling_device_max_state{name="0",type="Processor"} 10 node_cooling_device_max_state{name="1",type="Processor"} 10 node_cooling_device_max_state{name="2",type="Processor"} 10 node_cooling_device_max_state{name="3",type="Processor"} 10 node_cooling_device_max_state{name="4",type="Processor"} 10 node_cooling_device_max_state{name="5",type="Processor"} 10 node_cooling_device_max_state{name="6",type="Processor"} 10 node_cooling_device_max_state{name="7",type="Processor"} 10 node_cooling_device_max_state{name="8",type="intel_powerclamp"} 50 # HELP node_cpu_core_throttles_total Number of times this CPU core has been throttled. # TYPE node_cpu_core_throttles_total counter node_cpu_core_throttles_total{core="0",package="0"} 0 node_cpu_core_throttles_total{core="1",package="0"} 0 node_cpu_core_throttles_total{core="2",package="0"} 0 node_cpu_core_throttles_total{core="3",package="0"} 0 # HELP node_cpu_frequency_hertz Current CPU thread frequency in hertz. # TYPE node_cpu_frequency_hertz gauge node_cpu_frequency_hertz{cpu="0"} 2.581207e+09 node_cpu_frequency_hertz{cpu="1"} 1.823059e+09 node_cpu_frequency_hertz{cpu="2"} 1.536804e+09 node_cpu_frequency_hertz{cpu="3"} 1.561584e+09 node_cpu_frequency_hertz{cpu="4"} 1.597473e+09 node_cpu_frequency_hertz{cpu="5"} 1.630584e+09 node_cpu_frequency_hertz{cpu="6"} 2.815551e+09 node_cpu_frequency_hertz{cpu="7"} 1.535949e+09 # HELP node_cpu_frequency_max_hertz Maximum CPU thread frequency in hertz. # TYPE node_cpu_frequency_max_hertz gauge node_cpu_frequency_max_hertz{cpu="0"} 3.9e+09 node_cpu_frequency_max_hertz{cpu="1"} 3.9e+09 node_cpu_frequency_max_hertz{cpu="2"} 3.9e+09 node_cpu_frequency_max_hertz{cpu="3"} 3.9e+09 node_cpu_frequency_max_hertz{cpu="4"} 3.9e+09 node_cpu_frequency_max_hertz{cpu="5"} 3.9e+09 node_cpu_frequency_max_hertz{cpu="6"} 3.9e+09 node_cpu_frequency_max_hertz{cpu="7"} 3.9e+09 # HELP node_cpu_frequency_min_hertz Minimum CPU thread frequency in hertz. # TYPE node_cpu_frequency_min_hertz gauge node_cpu_frequency_min_hertz{cpu="0"} 8e+08 node_cpu_frequency_min_hertz{cpu="1"} 8e+08 node_cpu_frequency_min_hertz{cpu="2"} 8e+08 node_cpu_frequency_min_hertz{cpu="3"} 8e+08 node_cpu_frequency_min_hertz{cpu="4"} 8e+08 node_cpu_frequency_min_hertz{cpu="5"} 8e+08 node_cpu_frequency_min_hertz{cpu="6"} 8e+08 node_cpu_frequency_min_hertz{cpu="7"} 8e+08 # HELP node_cpu_guest_seconds_total Seconds the CPUs spent in guests (VMs) for each mode. # TYPE node_cpu_guest_seconds_total counter node_cpu_guest_seconds_total{cpu="0",mode="nice"} 0 node_cpu_guest_seconds_total{cpu="0",mode="user"} 0 node_cpu_guest_seconds_total{cpu="1",mode="nice"} 0 node_cpu_guest_seconds_total{cpu="1",mode="user"} 0 node_cpu_guest_seconds_total{cpu="2",mode="nice"} 0 node_cpu_guest_seconds_total{cpu="2",mode="user"} 0 node_cpu_guest_seconds_total{cpu="3",mode="nice"} 0 node_cpu_guest_seconds_total{cpu="3",mode="user"} 0 node_cpu_guest_seconds_total{cpu="4",mode="nice"} 0 node_cpu_guest_seconds_total{cpu="4",mode="user"} 0 node_cpu_guest_seconds_total{cpu="5",mode="nice"} 0 node_cpu_guest_seconds_total{cpu="5",mode="user"} 0 node_cpu_guest_seconds_total{cpu="6",mode="nice"} 0 node_cpu_guest_seconds_total{cpu="6",mode="user"} 0 node_cpu_guest_seconds_total{cpu="7",mode="nice"} 0 node_cpu_guest_seconds_total{cpu="7",mode="user"} 0 # HELP node_cpu_online CPUs that are online and being scheduled. # TYPE node_cpu_online gauge node_cpu_online{cpu="0"} 1 node_cpu_online{cpu="1"} 1 node_cpu_online{cpu="2"} 1 node_cpu_online{cpu="3"} 1 node_cpu_online{cpu="4"} 1 node_cpu_online{cpu="5"} 1 node_cpu_online{cpu="6"} 1 node_cpu_online{cpu="7"} 1 # HELP node_cpu_package_throttles_total Number of times this CPU package has been throttled. # TYPE node_cpu_package_throttles_total counter node_cpu_package_throttles_total{package="0"} 0 # HELP node_cpu_scaling_frequency_hertz Current scaled CPU thread frequency in hertz. # TYPE node_cpu_scaling_frequency_hertz gauge node_cpu_scaling_frequency_hertz{cpu="0"} 2.581207e+09 node_cpu_scaling_frequency_hertz{cpu="1"} 1.823059e+09 node_cpu_scaling_frequency_hertz{cpu="2"} 1.536804e+09 node_cpu_scaling_frequency_hertz{cpu="3"} 1.561584e+09 node_cpu_scaling_frequency_hertz{cpu="4"} 1.597473e+09 node_cpu_scaling_frequency_hertz{cpu="5"} 1.630584e+09 node_cpu_scaling_frequency_hertz{cpu="6"} 2.815551e+09 node_cpu_scaling_frequency_hertz{cpu="7"} 1.535949e+09 # HELP node_cpu_scaling_frequency_max_hertz Maximum scaled CPU thread frequency in hertz. # TYPE node_cpu_scaling_frequency_max_hertz gauge node_cpu_scaling_frequency_max_hertz{cpu="0"} 3.9e+09 node_cpu_scaling_frequency_max_hertz{cpu="1"} 3.9e+09 node_cpu_scaling_frequency_max_hertz{cpu="2"} 3.9e+09 node_cpu_scaling_frequency_max_hertz{cpu="3"} 3.9e+09 node_cpu_scaling_frequency_max_hertz{cpu="4"} 3.9e+09 node_cpu_scaling_frequency_max_hertz{cpu="5"} 3.9e+09 node_cpu_scaling_frequency_max_hertz{cpu="6"} 3.9e+09 node_cpu_scaling_frequency_max_hertz{cpu="7"} 3.9e+09 # HELP node_cpu_scaling_frequency_min_hertz Minimum scaled CPU thread frequency in hertz. # TYPE node_cpu_scaling_frequency_min_hertz gauge node_cpu_scaling_frequency_min_hertz{cpu="0"} 8e+08 node_cpu_scaling_frequency_min_hertz{cpu="1"} 8e+08 node_cpu_scaling_frequency_min_hertz{cpu="2"} 8e+08 node_cpu_scaling_frequency_min_hertz{cpu="3"} 8e+08 node_cpu_scaling_frequency_min_hertz{cpu="4"} 8e+08 node_cpu_scaling_frequency_min_hertz{cpu="5"} 8e+08 node_cpu_scaling_frequency_min_hertz{cpu="6"} 8e+08 node_cpu_scaling_frequency_min_hertz{cpu="7"} 8e+08 # HELP node_cpu_scaling_governor Current enabled CPU frequency governor. # TYPE node_cpu_scaling_governor gauge node_cpu_scaling_governor{cpu="0",governor="performance"} 0 node_cpu_scaling_governor{cpu="0",governor="powersave"} 1 node_cpu_scaling_governor{cpu="1",governor="performance"} 0 node_cpu_scaling_governor{cpu="1",governor="powersave"} 1 node_cpu_scaling_governor{cpu="2",governor="performance"} 0 node_cpu_scaling_governor{cpu="2",governor="powersave"} 1 node_cpu_scaling_governor{cpu="3",governor="performance"} 0 node_cpu_scaling_governor{cpu="3",governor="powersave"} 1 node_cpu_scaling_governor{cpu="4",governor="performance"} 0 node_cpu_scaling_governor{cpu="4",governor="powersave"} 1 node_cpu_scaling_governor{cpu="5",governor="performance"} 0 node_cpu_scaling_governor{cpu="5",governor="powersave"} 1 node_cpu_scaling_governor{cpu="6",governor="performance"} 0 node_cpu_scaling_governor{cpu="6",governor="powersave"} 1 node_cpu_scaling_governor{cpu="7",governor="performance"} 0 node_cpu_scaling_governor{cpu="7",governor="powersave"} 1 # HELP node_cpu_seconds_total Seconds the CPUs spent in each mode. # TYPE node_cpu_seconds_total counter node_cpu_seconds_total{cpu="0",mode="idle"} 1.3672149349e+08 node_cpu_seconds_total{cpu="0",mode="iowait"} 32164.3 node_cpu_seconds_total{cpu="0",mode="irq"} 0 node_cpu_seconds_total{cpu="0",mode="nice"} 26610.13 node_cpu_seconds_total{cpu="0",mode="softirq"} 6912 node_cpu_seconds_total{cpu="0",mode="steal"} 0 node_cpu_seconds_total{cpu="0",mode="system"} 134939.02 node_cpu_seconds_total{cpu="0",mode="user"} 135229.82 node_cpu_seconds_total{cpu="1",mode="idle"} 1.3643196452e+08 node_cpu_seconds_total{cpu="1",mode="iowait"} 211864.82 node_cpu_seconds_total{cpu="1",mode="irq"} 0 node_cpu_seconds_total{cpu="1",mode="nice"} 78414.69 node_cpu_seconds_total{cpu="1",mode="softirq"} 9342.86 node_cpu_seconds_total{cpu="1",mode="steal"} 0 node_cpu_seconds_total{cpu="1",mode="system"} 146823.34 node_cpu_seconds_total{cpu="1",mode="user"} 164592.51 node_cpu_seconds_total{cpu="2",mode="idle"} 1.3664955105e+08 node_cpu_seconds_total{cpu="2",mode="iowait"} 98834.68 node_cpu_seconds_total{cpu="2",mode="irq"} 0 node_cpu_seconds_total{cpu="2",mode="nice"} 16745.11 node_cpu_seconds_total{cpu="2",mode="softirq"} 6258.41 node_cpu_seconds_total{cpu="2",mode="steal"} 0 node_cpu_seconds_total{cpu="2",mode="system"} 134141.11 node_cpu_seconds_total{cpu="2",mode="user"} 139819.38 node_cpu_seconds_total{cpu="3",mode="idle"} 1.3668084035e+08 node_cpu_seconds_total{cpu="3",mode="iowait"} 41626.78 node_cpu_seconds_total{cpu="3",mode="irq"} 0 node_cpu_seconds_total{cpu="3",mode="nice"} 34936.35 node_cpu_seconds_total{cpu="3",mode="softirq"} 7828.88 node_cpu_seconds_total{cpu="3",mode="steal"} 0 node_cpu_seconds_total{cpu="3",mode="system"} 136971.11 node_cpu_seconds_total{cpu="3",mode="user"} 134410.48 node_cpu_seconds_total{cpu="4",mode="idle"} 1.3707992642e+08 node_cpu_seconds_total{cpu="4",mode="iowait"} 3139.9 node_cpu_seconds_total{cpu="4",mode="irq"} 0 node_cpu_seconds_total{cpu="4",mode="nice"} 2607.62 node_cpu_seconds_total{cpu="4",mode="softirq"} 3088.68 node_cpu_seconds_total{cpu="4",mode="steal"} 0 node_cpu_seconds_total{cpu="4",mode="system"} 41171.8 node_cpu_seconds_total{cpu="4",mode="user"} 60810.48 node_cpu_seconds_total{cpu="5",mode="idle"} 1.3706728516e+08 node_cpu_seconds_total{cpu="5",mode="iowait"} 9299.57 node_cpu_seconds_total{cpu="5",mode="irq"} 0 node_cpu_seconds_total{cpu="5",mode="nice"} 5276.12 node_cpu_seconds_total{cpu="5",mode="softirq"} 3057.14 node_cpu_seconds_total{cpu="5",mode="steal"} 0 node_cpu_seconds_total{cpu="5",mode="system"} 37046.52 node_cpu_seconds_total{cpu="5",mode="user"} 61249.54 node_cpu_seconds_total{cpu="6",mode="idle"} 1.3707114381e+08 node_cpu_seconds_total{cpu="6",mode="iowait"} 3440.81 node_cpu_seconds_total{cpu="6",mode="irq"} 0 node_cpu_seconds_total{cpu="6",mode="nice"} 1892.49 node_cpu_seconds_total{cpu="6",mode="softirq"} 3605.73 node_cpu_seconds_total{cpu="6",mode="steal"} 0 node_cpu_seconds_total{cpu="6",mode="system"} 39699 node_cpu_seconds_total{cpu="6",mode="user"} 67786.82 node_cpu_seconds_total{cpu="7",mode="idle"} 1.3706215451e+08 node_cpu_seconds_total{cpu="7",mode="iowait"} 3003.18 node_cpu_seconds_total{cpu="7",mode="irq"} 0 node_cpu_seconds_total{cpu="7",mode="nice"} 2452.84 node_cpu_seconds_total{cpu="7",mode="softirq"} 4007.89 node_cpu_seconds_total{cpu="7",mode="steal"} 0 node_cpu_seconds_total{cpu="7",mode="system"} 37624.43 node_cpu_seconds_total{cpu="7",mode="user"} 59760.99 # HELP node_disk_ata_rotation_rate_rpm ATA disk rotation rate in RPMs (0 for SSDs). # TYPE node_disk_ata_rotation_rate_rpm gauge node_disk_ata_rotation_rate_rpm{device="sda"} 0 node_disk_ata_rotation_rate_rpm{device="sdb"} 7200 # HELP node_disk_ata_write_cache ATA disk has a write cache. # TYPE node_disk_ata_write_cache gauge node_disk_ata_write_cache{device="sda"} 1 node_disk_ata_write_cache{device="sdb"} 1 # HELP node_disk_ata_write_cache_enabled ATA disk has its write cache enabled. # TYPE node_disk_ata_write_cache_enabled gauge node_disk_ata_write_cache_enabled{device="sda"} 0 node_disk_ata_write_cache_enabled{device="sdb"} 0 # HELP node_disk_info Info of /sys/block/<block_device>. # TYPE node_disk_info gauge node_disk_info{device="sda",major="8",minor="0",model="SanDisk_SD8SBAT256G1122",path="pci-0000:00:17.0-ata-1.0",revision="Z2201000",rotational="0",serial="153737401099",wwn="0x5001b44ed70b8f0b"} 1 node_disk_info{device="sdb",major="8",minor="16",model="TOSHIBA_DT01ACA100",path="pci-0000:00:17.0-ata-2.0",revision="MS2OA810",rotational="0",serial="183EZ69MS",wwn="0x5000039fd5c65a34"} 1 # HELP node_disk_io_now The number of I/Os currently in progress. # TYPE node_disk_io_now gauge node_disk_io_now{device="sda"} 0 node_disk_io_now{device="sdb"} 0 # HELP node_disk_io_time_seconds_total Total seconds spent doing I/Os. # TYPE node_disk_io_time_seconds_total counter node_disk_io_time_seconds_total{device="sda"} 138866.009 node_disk_io_time_seconds_total{device="sdb"} 543342.367 # HELP node_disk_io_time_weighted_seconds_total The weighted # of seconds spent doing I/Os. # TYPE node_disk_io_time_weighted_seconds_total counter node_disk_io_time_weighted_seconds_total{device="sda"} 879943.436 node_disk_io_time_weighted_seconds_total{device="sdb"} 2.428013889e+06 # HELP node_disk_read_bytes_total The total number of bytes read successfully. # TYPE node_disk_read_bytes_total counter node_disk_read_bytes_total{device="sda"} 3.5895248622592e+13 node_disk_read_bytes_total{device="sdb"} 2.624645248e+11 # HELP node_disk_read_time_seconds_total The total number of seconds spent by all reads. # TYPE node_disk_read_time_seconds_total counter node_disk_read_time_seconds_total{device="sda"} 179058.026 node_disk_read_time_seconds_total{device="sdb"} 110779.06 # HELP node_disk_reads_completed_total The total number of reads completed successfully. # TYPE node_disk_reads_completed_total counter node_disk_reads_completed_total{device="sda"} 5.23941406e+08 node_disk_reads_completed_total{device="sdb"} 2.1549768e+07 # HELP node_disk_reads_merged_total The total number of reads merged. # TYPE node_disk_reads_merged_total counter node_disk_reads_merged_total{device="sda"} 8.9284423e+07 node_disk_reads_merged_total{device="sdb"} 60633 # HELP node_disk_write_time_seconds_total This is the total number of seconds spent by all writes. # TYPE node_disk_write_time_seconds_total counter node_disk_write_time_seconds_total{device="sda"} 701058.03 node_disk_write_time_seconds_total{device="sdb"} 2.316400717e+06 # HELP node_disk_writes_completed_total The total number of writes completed successfully. # TYPE node_disk_writes_completed_total counter node_disk_writes_completed_total{device="sda"} 1.12041519e+08 node_disk_writes_completed_total{device="sdb"} 1.02341494e+08 # HELP node_disk_writes_merged_total The number of writes merged. # TYPE node_disk_writes_merged_total counter node_disk_writes_merged_total{device="sda"} 4.3523935e+07 node_disk_writes_merged_total{device="sdb"} 2.04404036e+08 # HELP node_disk_written_bytes_total The total number of bytes written successfully. # TYPE node_disk_written_bytes_total counter node_disk_written_bytes_total{device="sda"} 4.076877714432e+12 node_disk_written_bytes_total{device="sdb"} 3.6091896119296e+13 # HELP node_dmi_info A metric with a constant '1' value labeled by bios_date, bios_release, bios_vendor, bios_version, board_asset_tag, board_name, board_serial, board_vendor, board_version, chassis_asset_tag, chassis_serial, chassis_vendor, chassis_version, product_family, product_name, product_serial, product_sku, product_uuid, product_version, system_vendor if provided by DMI. # TYPE node_dmi_info gauge node_dmi_info{bios_date="11/16/2017",bios_vendor="Dell Inc.",bios_version="2.3.2",board_asset_tag="",board_name="0FRVY0",board_serial=".FM7H8N2.CNWS30081D00BD.",board_vendor="Dell Inc.",board_version="A01",chassis_asset_tag="",chassis_serial="FM7H8N2",chassis_vendor="Dell Inc.",chassis_version="",product_name="PowerEdge R230",product_serial="FM7H8N2",product_uuid="4C4C4544-004D-3710-8048-C6C04F384E32",product_version="",system_vendor="Dell Inc."} 1 # HELP node_edac_correctable_errors_total Total correctable memory errors. # TYPE node_edac_correctable_errors_total counter node_edac_correctable_errors_total{controller="0"} 0 # HELP node_edac_csrow_correctable_errors_total Total correctable memory errors for this csrow. # TYPE node_edac_csrow_correctable_errors_total counter node_edac_csrow_correctable_errors_total{controller="0",csrow="0"} 0 node_edac_csrow_correctable_errors_total{controller="0",csrow="unknown"} 0 # HELP node_edac_csrow_uncorrectable_errors_total Total uncorrectable memory errors for this csrow. # TYPE node_edac_csrow_uncorrectable_errors_total counter node_edac_csrow_uncorrectable_errors_total{controller="0",csrow="0"} 0 node_edac_csrow_uncorrectable_errors_total{controller="0",csrow="unknown"} 0 # HELP node_edac_uncorrectable_errors_total Total uncorrectable memory errors. # TYPE node_edac_uncorrectable_errors_total counter node_edac_uncorrectable_errors_total{controller="0"} 0 # HELP node_entropy_available_bits Bits of available entropy. # TYPE node_entropy_available_bits gauge node_entropy_available_bits 3131 # HELP node_entropy_pool_size_bits Bits of entropy pool. # TYPE node_entropy_pool_size_bits gauge node_entropy_pool_size_bits 4096 # HELP node_exporter_build_info A metric with a constant '1' value labeled by version, revision, branch, goversion from which node_exporter was built, and the goos and goarch for the build. # TYPE node_exporter_build_info gauge node_exporter_build_info{branch="HEAD",goarch="amd64",goos="linux",goversion="go1.23.7",revision="f2ec547b49af53815038a50265aa2adcd1275959",tags="unknown",version="1.9.1"} 1 # HELP node_filefd_allocated File descriptor statistics: allocated. # TYPE node_filefd_allocated gauge node_filefd_allocated 1568 # HELP node_filefd_maximum File descriptor statistics: maximum. # TYPE node_filefd_maximum gauge node_filefd_maximum 802922 # HELP node_filesystem_avail_bytes Filesystem space available to non-root users in bytes. # TYPE node_filesystem_avail_bytes gauge node_filesystem_avail_bytes{device="/dev/sda1",device_error="",fstype="xfs",mountpoint="/boot"} 3.44408064e+08 node_filesystem_avail_bytes{device="/dev/sda2",device_error="",fstype="xfs",mountpoint="/"} 1.68682094592e+11 node_filesystem_avail_bytes{device="/dev/sdb1",device_error="",fstype="xfs",mountpoint="/data"} 6.90315431936e+11 node_filesystem_avail_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run"} 3.718213632e+09 node_filesystem_avail_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/0"} 8.3273728e+08 node_filesystem_avail_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/1001"} 8.3273728e+08 # HELP node_filesystem_device_error Whether an error occurred while getting statistics for the given device. # TYPE node_filesystem_device_error gauge node_filesystem_device_error{device="/dev/sda1",device_error="",fstype="xfs",mountpoint="/boot"} 0 node_filesystem_device_error{device="/dev/sda2",device_error="",fstype="xfs",mountpoint="/"} 0 node_filesystem_device_error{device="/dev/sdb1",device_error="",fstype="xfs",mountpoint="/data"} 0 node_filesystem_device_error{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run"} 0 node_filesystem_device_error{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/0"} 0 node_filesystem_device_error{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/1001"} 0 # HELP node_filesystem_files Filesystem total file nodes. # TYPE node_filesystem_files gauge node_filesystem_files{device="/dev/sda1",device_error="",fstype="xfs",mountpoint="/boot"} 256000 node_filesystem_files{device="/dev/sda2",device_error="",fstype="xfs",mountpoint="/"} 1.2057856e+08 node_filesystem_files{device="/dev/sdb1",device_error="",fstype="xfs",mountpoint="/data"} 4.88380416e+08 node_filesystem_files{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run"} 1.016521e+06 node_filesystem_files{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/0"} 1.016521e+06 node_filesystem_files{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/1001"} 1.016521e+06 # HELP node_filesystem_files_free Filesystem total free file nodes. # TYPE node_filesystem_files_free gauge node_filesystem_files_free{device="/dev/sda1",device_error="",fstype="xfs",mountpoint="/boot"} 255660 node_filesystem_files_free{device="/dev/sda2",device_error="",fstype="xfs",mountpoint="/"} 1.20041013e+08 node_filesystem_files_free{device="/dev/sdb1",device_error="",fstype="xfs",mountpoint="/data"} 4.86285227e+08 node_filesystem_files_free{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run"} 1.015927e+06 node_filesystem_files_free{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/0"} 1.01652e+06 node_filesystem_files_free{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/1001"} 1.01652e+06 # HELP node_filesystem_free_bytes Filesystem free space in bytes. # TYPE node_filesystem_free_bytes gauge node_filesystem_free_bytes{device="/dev/sda1",device_error="",fstype="xfs",mountpoint="/boot"} 3.44408064e+08 node_filesystem_free_bytes{device="/dev/sda2",device_error="",fstype="xfs",mountpoint="/"} 1.68682094592e+11 node_filesystem_free_bytes{device="/dev/sdb1",device_error="",fstype="xfs",mountpoint="/data"} 6.90315431936e+11 node_filesystem_free_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run"} 3.718213632e+09 node_filesystem_free_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/0"} 8.3273728e+08 node_filesystem_free_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/1001"} 8.3273728e+08 # HELP node_filesystem_mount_info Filesystem mount information. # TYPE node_filesystem_mount_info gauge node_filesystem_mount_info{device="/dev/sda1",major="8",minor="1",mountpoint="/boot"} 1 node_filesystem_mount_info{device="/dev/sda2",major="8",minor="2",mountpoint="/"} 1 node_filesystem_mount_info{device="/dev/sdb1",major="8",minor="17",mountpoint="/data"} 1 node_filesystem_mount_info{device="tmpfs",major="0",minor="20",mountpoint="/run"} 1 node_filesystem_mount_info{device="tmpfs",major="0",minor="37",mountpoint="/run/user/0"} 1 node_filesystem_mount_info{device="tmpfs",major="0",minor="39",mountpoint="/run/user/1001"} 1 # HELP node_filesystem_purgeable_bytes Filesystem space available including purgeable space (MacOS specific). # TYPE node_filesystem_purgeable_bytes gauge node_filesystem_purgeable_bytes{device="/dev/sda1",device_error="",fstype="xfs",mountpoint="/boot"} 0 node_filesystem_purgeable_bytes{device="/dev/sda2",device_error="",fstype="xfs",mountpoint="/"} 0 node_filesystem_purgeable_bytes{device="/dev/sdb1",device_error="",fstype="xfs",mountpoint="/data"} 0 node_filesystem_purgeable_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run"} 0 node_filesystem_purgeable_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/0"} 0 node_filesystem_purgeable_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/1001"} 0 # HELP node_filesystem_readonly Filesystem read-only status. # TYPE node_filesystem_readonly gauge node_filesystem_readonly{device="/dev/sda1",device_error="",fstype="xfs",mountpoint="/boot"} 0 node_filesystem_readonly{device="/dev/sda2",device_error="",fstype="xfs",mountpoint="/"} 0 node_filesystem_readonly{device="/dev/sdb1",device_error="",fstype="xfs",mountpoint="/data"} 0 node_filesystem_readonly{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run"} 0 node_filesystem_readonly{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/0"} 0 node_filesystem_readonly{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/1001"} 0 # HELP node_filesystem_size_bytes Filesystem size in bytes. # TYPE node_filesystem_size_bytes gauge node_filesystem_size_bytes{device="/dev/sda1",device_error="",fstype="xfs",mountpoint="/boot"} 5.2078592e+08 node_filesystem_size_bytes{device="/dev/sda2",device_error="",fstype="xfs",mountpoint="/"} 2.46824312832e+11 node_filesystem_size_bytes{device="/dev/sdb1",device_error="",fstype="xfs",mountpoint="/data"} 9.997147136e+11 node_filesystem_size_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run"} 4.163670016e+09 node_filesystem_size_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/0"} 8.3273728e+08 node_filesystem_size_bytes{device="tmpfs",device_error="",fstype="tmpfs",mountpoint="/run/user/1001"} 8.3273728e+08 # HELP node_forks_total Total number of forks. # TYPE node_forks_total counter node_forks_total 1.1975518e+08 # HELP node_hwmon_chip_names Annotation metric for human-readable chip names # TYPE node_hwmon_chip_names gauge node_hwmon_chip_names{chip="platform_coretemp_0",chip_name="coretemp"} 1 # HELP node_hwmon_sensor_label Label for given chip and sensor # TYPE node_hwmon_sensor_label gauge node_hwmon_sensor_label{chip="platform_coretemp_0",label="Core 0",sensor="temp2"} 1 node_hwmon_sensor_label{chip="platform_coretemp_0",label="Core 1",sensor="temp3"} 1 node_hwmon_sensor_label{chip="platform_coretemp_0",label="Core 2",sensor="temp4"} 1 node_hwmon_sensor_label{chip="platform_coretemp_0",label="Core 3",sensor="temp5"} 1 node_hwmon_sensor_label{chip="platform_coretemp_0",label="Physical id 0",sensor="temp1"} 1 # HELP node_hwmon_temp_celsius Hardware monitor for temperature (input) # TYPE node_hwmon_temp_celsius gauge node_hwmon_temp_celsius{chip="platform_coretemp_0",sensor="temp1"} 40 node_hwmon_temp_celsius{chip="platform_coretemp_0",sensor="temp2"} 34 node_hwmon_temp_celsius{chip="platform_coretemp_0",sensor="temp3"} 40 node_hwmon_temp_celsius{chip="platform_coretemp_0",sensor="temp4"} 34 node_hwmon_temp_celsius{chip="platform_coretemp_0",sensor="temp5"} 33 # HELP node_hwmon_temp_crit_alarm_celsius Hardware monitor for temperature (crit_alarm) # TYPE node_hwmon_temp_crit_alarm_celsius gauge node_hwmon_temp_crit_alarm_celsius{chip="platform_coretemp_0",sensor="temp1"} 0 node_hwmon_temp_crit_alarm_celsius{chip="platform_coretemp_0",sensor="temp2"} 0 node_hwmon_temp_crit_alarm_celsius{chip="platform_coretemp_0",sensor="temp3"} 0 node_hwmon_temp_crit_alarm_celsius{chip="platform_coretemp_0",sensor="temp4"} 0 node_hwmon_temp_crit_alarm_celsius{chip="platform_coretemp_0",sensor="temp5"} 0 # HELP node_hwmon_temp_crit_celsius Hardware monitor for temperature (crit) # TYPE node_hwmon_temp_crit_celsius gauge node_hwmon_temp_crit_celsius{chip="platform_coretemp_0",sensor="temp1"} 100 node_hwmon_temp_crit_celsius{chip="platform_coretemp_0",sensor="temp2"} 100 node_hwmon_temp_crit_celsius{chip="platform_coretemp_0",sensor="temp3"} 100 node_hwmon_temp_crit_celsius{chip="platform_coretemp_0",sensor="temp4"} 100 node_hwmon_temp_crit_celsius{chip="platform_coretemp_0",sensor="temp5"} 100 # HELP node_hwmon_temp_max_celsius Hardware monitor for temperature (max) # TYPE node_hwmon_temp_max_celsius gauge node_hwmon_temp_max_celsius{chip="platform_coretemp_0",sensor="temp1"} 80 node_hwmon_temp_max_celsius{chip="platform_coretemp_0",sensor="temp2"} 80 node_hwmon_temp_max_celsius{chip="platform_coretemp_0",sensor="temp3"} 80 node_hwmon_temp_max_celsius{chip="platform_coretemp_0",sensor="temp4"} 80 node_hwmon_temp_max_celsius{chip="platform_coretemp_0",sensor="temp5"} 80 # HELP node_intr_total Total number of interrupts serviced. # TYPE node_intr_total counter node_intr_total 1.7228248467e+10 # HELP node_load1 1m load average. # TYPE node_load1 gauge node_load1 0 # HELP node_load15 15m load average. # TYPE node_load15 gauge node_load15 0.05 # HELP node_load5 5m load average. # TYPE node_load5 gauge node_load5 0.01 # HELP node_memory_Active_anon_bytes Memory information field Active_anon_bytes. # TYPE node_memory_Active_anon_bytes gauge node_memory_Active_anon_bytes 1.274322944e+09 # HELP node_memory_Active_bytes Memory information field Active_bytes. # TYPE node_memory_Active_bytes gauge node_memory_Active_bytes 1.668841472e+09 # HELP node_memory_Active_file_bytes Memory information field Active_file_bytes. # TYPE node_memory_Active_file_bytes gauge node_memory_Active_file_bytes 3.94518528e+08 # HELP node_memory_AnonHugePages_bytes Memory information field AnonHugePages_bytes. # TYPE node_memory_AnonHugePages_bytes gauge node_memory_AnonHugePages_bytes 0 # HELP node_memory_AnonPages_bytes Memory information field AnonPages_bytes. # TYPE node_memory_AnonPages_bytes gauge node_memory_AnonPages_bytes 1.27479808e+09 # HELP node_memory_Bounce_bytes Memory information field Bounce_bytes. # TYPE node_memory_Bounce_bytes gauge node_memory_Bounce_bytes 0 # HELP node_memory_Buffers_bytes Memory information field Buffers_bytes. # TYPE node_memory_Buffers_bytes gauge node_memory_Buffers_bytes 0 # HELP node_memory_Cached_bytes Memory information field Cached_bytes. # TYPE node_memory_Cached_bytes gauge node_memory_Cached_bytes 3.901906944e+09 # HELP node_memory_CmaFree_bytes Memory information field CmaFree_bytes. # TYPE node_memory_CmaFree_bytes gauge node_memory_CmaFree_bytes 0 # HELP node_memory_CmaTotal_bytes Memory information field CmaTotal_bytes. # TYPE node_memory_CmaTotal_bytes gauge node_memory_CmaTotal_bytes 0 # HELP node_memory_CommitLimit_bytes Memory information field CommitLimit_bytes. # TYPE node_memory_CommitLimit_bytes gauge node_memory_CommitLimit_bytes 1.2753600512e+10 # HELP node_memory_Committed_AS_bytes Memory information field Committed_AS_bytes. # TYPE node_memory_Committed_AS_bytes gauge node_memory_Committed_AS_bytes 2.498719744e+09 # HELP node_memory_DirectMap1G_bytes Memory information field DirectMap1G_bytes. # TYPE node_memory_DirectMap1G_bytes gauge node_memory_DirectMap1G_bytes 0 # HELP node_memory_DirectMap2M_bytes Memory information field DirectMap2M_bytes. # TYPE node_memory_DirectMap2M_bytes gauge node_memory_DirectMap2M_bytes 7.910457344e+09 # HELP node_memory_DirectMap4k_bytes Memory information field DirectMap4k_bytes. # TYPE node_memory_DirectMap4k_bytes gauge node_memory_DirectMap4k_bytes 6.36444672e+08 # HELP node_memory_Dirty_bytes Memory information field Dirty_bytes. # TYPE node_memory_Dirty_bytes gauge node_memory_Dirty_bytes 118784 # HELP node_memory_HardwareCorrupted_bytes Memory information field HardwareCorrupted_bytes. # TYPE node_memory_HardwareCorrupted_bytes gauge node_memory_HardwareCorrupted_bytes 0 # HELP node_memory_HugePages_Free Memory information field HugePages_Free. # TYPE node_memory_HugePages_Free gauge node_memory_HugePages_Free 0 # HELP node_memory_HugePages_Rsvd Memory information field HugePages_Rsvd. # TYPE node_memory_HugePages_Rsvd gauge node_memory_HugePages_Rsvd 0 # HELP node_memory_HugePages_Surp Memory information field HugePages_Surp. # TYPE node_memory_HugePages_Surp gauge node_memory_HugePages_Surp 0 # HELP node_memory_HugePages_Total Memory information field HugePages_Total. # TYPE node_memory_HugePages_Total gauge node_memory_HugePages_Total 0 # HELP node_memory_Hugepagesize_bytes Memory information field Hugepagesize_bytes. # TYPE node_memory_Hugepagesize_bytes gauge node_memory_Hugepagesize_bytes 2.097152e+06 # HELP node_memory_Inactive_anon_bytes Memory information field Inactive_anon_bytes. # TYPE node_memory_Inactive_anon_bytes gauge node_memory_Inactive_anon_bytes 1.569492992e+09 # HELP node_memory_Inactive_bytes Memory information field Inactive_bytes. # TYPE node_memory_Inactive_bytes gauge node_memory_Inactive_bytes 4.95925248e+09 # HELP node_memory_Inactive_file_bytes Memory information field Inactive_file_bytes. # TYPE node_memory_Inactive_file_bytes gauge node_memory_Inactive_file_bytes 3.389759488e+09 # HELP node_memory_KernelStack_bytes Memory information field KernelStack_bytes. # TYPE node_memory_KernelStack_bytes gauge node_memory_KernelStack_bytes 5.849088e+06 # HELP node_memory_Mapped_bytes Memory information field Mapped_bytes. # TYPE node_memory_Mapped_bytes gauge node_memory_Mapped_bytes 1.71126784e+08 # HELP node_memory_MemAvailable_bytes Memory information field MemAvailable_bytes. # TYPE node_memory_MemAvailable_bytes gauge node_memory_MemAvailable_bytes 4.527161344e+09 # HELP node_memory_MemFree_bytes Memory information field MemFree_bytes. # TYPE node_memory_MemFree_bytes gauge node_memory_MemFree_bytes 2.42180096e+08 # HELP node_memory_MemTotal_bytes Memory information field MemTotal_bytes. # TYPE node_memory_MemTotal_bytes gauge node_memory_MemTotal_bytes 8.327340032e+09 # HELP node_memory_Mlocked_bytes Memory information field Mlocked_bytes. # TYPE node_memory_Mlocked_bytes gauge node_memory_Mlocked_bytes 0 # HELP node_memory_NFS_Unstable_bytes Memory information field NFS_Unstable_bytes. # TYPE node_memory_NFS_Unstable_bytes gauge node_memory_NFS_Unstable_bytes 0 # HELP node_memory_PageTables_bytes Memory information field PageTables_bytes. # TYPE node_memory_PageTables_bytes gauge node_memory_PageTables_bytes 2.3207936e+07 # HELP node_memory_SReclaimable_bytes Memory information field SReclaimable_bytes. # TYPE node_memory_SReclaimable_bytes gauge node_memory_SReclaimable_bytes 8.17106944e+08 # HELP node_memory_SUnreclaim_bytes Memory information field SUnreclaim_bytes. # TYPE node_memory_SUnreclaim_bytes gauge node_memory_SUnreclaim_bytes 1.09719552e+08 # HELP node_memory_Shmem_bytes Memory information field Shmem_bytes. # TYPE node_memory_Shmem_bytes gauge node_memory_Shmem_bytes 1.17620736e+08 # HELP node_memory_Slab_bytes Memory information field Slab_bytes. # TYPE node_memory_Slab_bytes gauge node_memory_Slab_bytes 9.26826496e+08 # HELP node_memory_SwapCached_bytes Memory information field SwapCached_bytes. # TYPE node_memory_SwapCached_bytes gauge node_memory_SwapCached_bytes 1.651474432e+09 # HELP node_memory_SwapFree_bytes Memory information field SwapFree_bytes. # TYPE node_memory_SwapFree_bytes gauge node_memory_SwapFree_bytes 5.569159168e+09 # HELP node_memory_SwapTotal_bytes Memory information field SwapTotal_bytes. # TYPE node_memory_SwapTotal_bytes gauge node_memory_SwapTotal_bytes 8.589930496e+09 # HELP node_memory_Unevictable_bytes Memory information field Unevictable_bytes. # TYPE node_memory_Unevictable_bytes gauge node_memory_Unevictable_bytes 0 # HELP node_memory_VmallocChunk_bytes Memory information field VmallocChunk_bytes. # TYPE node_memory_VmallocChunk_bytes gauge node_memory_VmallocChunk_bytes 3.5183560486912e+13 # HELP node_memory_VmallocTotal_bytes Memory information field VmallocTotal_bytes. # TYPE node_memory_VmallocTotal_bytes gauge node_memory_VmallocTotal_bytes 3.5184372087808e+13 # HELP node_memory_VmallocUsed_bytes Memory information field VmallocUsed_bytes. # TYPE node_memory_VmallocUsed_bytes gauge node_memory_VmallocUsed_bytes 3.03403008e+08 # HELP node_memory_WritebackTmp_bytes Memory information field WritebackTmp_bytes. # TYPE node_memory_WritebackTmp_bytes gauge node_memory_WritebackTmp_bytes 0 # HELP node_memory_Writeback_bytes Memory information field Writeback_bytes. # TYPE node_memory_Writeback_bytes gauge node_memory_Writeback_bytes 0 # HELP node_netstat_Icmp6_InErrors Statistic Icmp6InErrors. # TYPE node_netstat_Icmp6_InErrors untyped node_netstat_Icmp6_InErrors 0 # HELP node_netstat_Icmp6_InMsgs Statistic Icmp6InMsgs. # TYPE node_netstat_Icmp6_InMsgs untyped node_netstat_Icmp6_InMsgs 222720 # HELP node_netstat_Icmp6_OutMsgs Statistic Icmp6OutMsgs. # TYPE node_netstat_Icmp6_OutMsgs untyped node_netstat_Icmp6_OutMsgs 3685 # HELP node_netstat_Icmp_InErrors Statistic IcmpInErrors. # TYPE node_netstat_Icmp_InErrors untyped node_netstat_Icmp_InErrors 1176 # HELP node_netstat_Icmp_InMsgs Statistic IcmpInMsgs. # TYPE node_netstat_Icmp_InMsgs untyped node_netstat_Icmp_InMsgs 6.912577e+06 # HELP node_netstat_Icmp_OutMsgs Statistic IcmpOutMsgs. # TYPE node_netstat_Icmp_OutMsgs untyped node_netstat_Icmp_OutMsgs 9.448567e+06 # HELP node_netstat_Ip6_InOctets Statistic Ip6InOctets. # TYPE node_netstat_Ip6_InOctets untyped node_netstat_Ip6_InOctets 3.377538469e+09 # HELP node_netstat_Ip6_OutOctets Statistic Ip6OutOctets. # TYPE node_netstat_Ip6_OutOctets untyped node_netstat_Ip6_OutOctets 1.482582762e+09 # HELP node_netstat_IpExt_InOctets Statistic IpExtInOctets. # TYPE node_netstat_IpExt_InOctets untyped node_netstat_IpExt_InOctets 3.665852351531e+12 # HELP node_netstat_IpExt_OutOctets Statistic IpExtOutOctets. # TYPE node_netstat_IpExt_OutOctets untyped node_netstat_IpExt_OutOctets 4.419622976386e+12 # HELP node_netstat_Ip_Forwarding Statistic IpForwarding. # TYPE node_netstat_Ip_Forwarding untyped node_netstat_Ip_Forwarding 1 # HELP node_netstat_TcpExt_ListenDrops Statistic TcpExtListenDrops. # TYPE node_netstat_TcpExt_ListenDrops untyped node_netstat_TcpExt_ListenDrops 7305 # HELP node_netstat_TcpExt_ListenOverflows Statistic TcpExtListenOverflows. # TYPE node_netstat_TcpExt_ListenOverflows untyped node_netstat_TcpExt_ListenOverflows 0 # HELP node_netstat_TcpExt_SyncookiesFailed Statistic TcpExtSyncookiesFailed. # TYPE node_netstat_TcpExt_SyncookiesFailed untyped node_netstat_TcpExt_SyncookiesFailed 811727 # HELP node_netstat_TcpExt_SyncookiesRecv Statistic TcpExtSyncookiesRecv. # TYPE node_netstat_TcpExt_SyncookiesRecv untyped node_netstat_TcpExt_SyncookiesRecv 1672 # HELP node_netstat_TcpExt_SyncookiesSent Statistic TcpExtSyncookiesSent. # TYPE node_netstat_TcpExt_SyncookiesSent untyped node_netstat_TcpExt_SyncookiesSent 6483 # HELP node_netstat_TcpExt_TCPOFOQueue Statistic TcpExtTCPOFOQueue. # TYPE node_netstat_TcpExt_TCPOFOQueue untyped node_netstat_TcpExt_TCPOFOQueue 298292 # HELP node_netstat_TcpExt_TCPSynRetrans Statistic TcpExtTCPSynRetrans. # TYPE node_netstat_TcpExt_TCPSynRetrans untyped node_netstat_TcpExt_TCPSynRetrans 2.5521682e+07 # HELP node_netstat_TcpExt_TCPTimeouts Statistic TcpExtTCPTimeouts. # TYPE node_netstat_TcpExt_TCPTimeouts untyped node_netstat_TcpExt_TCPTimeouts 3.1837392e+07 # HELP node_netstat_Tcp_ActiveOpens Statistic TcpActiveOpens. # TYPE node_netstat_Tcp_ActiveOpens untyped node_netstat_Tcp_ActiveOpens 6.80815857e+08 # HELP node_netstat_Tcp_CurrEstab Statistic TcpCurrEstab. # TYPE node_netstat_Tcp_CurrEstab untyped node_netstat_Tcp_CurrEstab 11 # HELP node_netstat_Tcp_InErrs Statistic TcpInErrs. # TYPE node_netstat_Tcp_InErrs untyped node_netstat_Tcp_InErrs 1468 # HELP node_netstat_Tcp_InSegs Statistic TcpInSegs. # TYPE node_netstat_Tcp_InSegs untyped node_netstat_Tcp_InSegs 1.2473513332e+10 # HELP node_netstat_Tcp_OutRsts Statistic TcpOutRsts. # TYPE node_netstat_Tcp_OutRsts untyped node_netstat_Tcp_OutRsts 6.61405146e+08 # HELP node_netstat_Tcp_OutSegs Statistic TcpOutSegs. # TYPE node_netstat_Tcp_OutSegs untyped node_netstat_Tcp_OutSegs 1.2771923504e+10 # HELP node_netstat_Tcp_PassiveOpens Statistic TcpPassiveOpens. # TYPE node_netstat_Tcp_PassiveOpens untyped node_netstat_Tcp_PassiveOpens 3.7807438e+07 # HELP node_netstat_Tcp_RetransSegs Statistic TcpRetransSegs. # TYPE node_netstat_Tcp_RetransSegs untyped node_netstat_Tcp_RetransSegs 3.3096032e+07 # HELP node_netstat_Udp6_InDatagrams Statistic Udp6InDatagrams. # TYPE node_netstat_Udp6_InDatagrams untyped node_netstat_Udp6_InDatagrams 13 # HELP node_netstat_Udp6_InErrors Statistic Udp6InErrors. # TYPE node_netstat_Udp6_InErrors untyped node_netstat_Udp6_InErrors 0 # HELP node_netstat_Udp6_NoPorts Statistic Udp6NoPorts. # TYPE node_netstat_Udp6_NoPorts untyped node_netstat_Udp6_NoPorts 3203 # HELP node_netstat_Udp6_OutDatagrams Statistic Udp6OutDatagrams. # TYPE node_netstat_Udp6_OutDatagrams untyped node_netstat_Udp6_OutDatagrams 3216 # HELP node_netstat_Udp6_RcvbufErrors Statistic Udp6RcvbufErrors. # TYPE node_netstat_Udp6_RcvbufErrors untyped node_netstat_Udp6_RcvbufErrors 0 # HELP node_netstat_Udp6_SndbufErrors Statistic Udp6SndbufErrors. # TYPE node_netstat_Udp6_SndbufErrors untyped node_netstat_Udp6_SndbufErrors 0 # HELP node_netstat_UdpLite6_InErrors Statistic UdpLite6InErrors. # TYPE node_netstat_UdpLite6_InErrors untyped node_netstat_UdpLite6_InErrors 0 # HELP node_netstat_UdpLite_InErrors Statistic UdpLiteInErrors. # TYPE node_netstat_UdpLite_InErrors untyped node_netstat_UdpLite_InErrors 0 # HELP node_netstat_Udp_InDatagrams Statistic UdpInDatagrams. # TYPE node_netstat_Udp_InDatagrams untyped node_netstat_Udp_InDatagrams 1.245413e+06 # HELP node_netstat_Udp_InErrors Statistic UdpInErrors. # TYPE node_netstat_Udp_InErrors untyped node_netstat_Udp_InErrors 0 # HELP node_netstat_Udp_NoPorts Statistic UdpNoPorts. # TYPE node_netstat_Udp_NoPorts untyped node_netstat_Udp_NoPorts 6022 # HELP node_netstat_Udp_OutDatagrams Statistic UdpOutDatagrams. # TYPE node_netstat_Udp_OutDatagrams untyped node_netstat_Udp_OutDatagrams 1.749769e+06 # HELP node_netstat_Udp_RcvbufErrors Statistic UdpRcvbufErrors. # TYPE node_netstat_Udp_RcvbufErrors untyped node_netstat_Udp_RcvbufErrors 0 # HELP node_netstat_Udp_SndbufErrors Statistic UdpSndbufErrors. # TYPE node_netstat_Udp_SndbufErrors untyped node_netstat_Udp_SndbufErrors 0 # HELP node_network_address_assign_type Network device property: address_assign_type # TYPE node_network_address_assign_type gauge node_network_address_assign_type{device="docker0"} 3 node_network_address_assign_type{device="em1"} 0 node_network_address_assign_type{device="em2"} 0 node_network_address_assign_type{device="lo"} 0 # HELP node_network_carrier Network device property: carrier # TYPE node_network_carrier gauge node_network_carrier{device="docker0"} 0 node_network_carrier{device="em1"} 1 node_network_carrier{device="lo"} 1 # HELP node_network_carrier_changes_total Network device property: carrier_changes_total # TYPE node_network_carrier_changes_total counter node_network_carrier_changes_total{device="docker0"} 60 node_network_carrier_changes_total{device="em1"} 5 node_network_carrier_changes_total{device="em2"} 0 node_network_carrier_changes_total{device="lo"} 0 # HELP node_network_device_id Network device property: device_id # TYPE node_network_device_id gauge node_network_device_id{device="docker0"} 0 node_network_device_id{device="em1"} 0 node_network_device_id{device="em2"} 0 node_network_device_id{device="lo"} 0 # HELP node_network_dormant Network device property: dormant # TYPE node_network_dormant gauge node_network_dormant{device="docker0"} 0 node_network_dormant{device="em1"} 0 node_network_dormant{device="lo"} 0 # HELP node_network_flags Network device property: flags # TYPE node_network_flags gauge node_network_flags{device="docker0"} 4099 node_network_flags{device="em1"} 4099 node_network_flags{device="em2"} 4098 node_network_flags{device="lo"} 9 # HELP node_network_iface_id Network device property: iface_id # TYPE node_network_iface_id gauge node_network_iface_id{device="docker0"} 5 node_network_iface_id{device="em1"} 2 node_network_iface_id{device="em2"} 3 node_network_iface_id{device="lo"} 1 # HELP node_network_iface_link Network device property: iface_link # TYPE node_network_iface_link gauge node_network_iface_link{device="docker0"} 5 node_network_iface_link{device="em1"} 2 node_network_iface_link{device="em2"} 3 node_network_iface_link{device="lo"} 1 # HELP node_network_iface_link_mode Network device property: iface_link_mode # TYPE node_network_iface_link_mode gauge node_network_iface_link_mode{device="docker0"} 0 node_network_iface_link_mode{device="em1"} 0 node_network_iface_link_mode{device="em2"} 0 node_network_iface_link_mode{device="lo"} 0 # HELP node_network_info Non-numeric data from /sys/class/net/<iface>, value is always 1. # TYPE node_network_info gauge node_network_info{address="00:00:00:00:00:00",adminstate="up",broadcast="00:00:00:00:00:00",device="lo",duplex="",ifalias="",operstate="unknown"} 1 node_network_info{address="02:42:e1:5f:5e:05",adminstate="up",broadcast="ff:ff:ff:ff:ff:ff",device="docker0",duplex="",ifalias="",operstate="down"} 1 node_network_info{address="50:9a:4c:80:08:89",adminstate="up",broadcast="ff:ff:ff:ff:ff:ff",device="em1",duplex="full",ifalias="",operstate="up"} 1 node_network_info{address="50:9a:4c:80:08:8a",adminstate="down",broadcast="ff:ff:ff:ff:ff:ff",device="em2",duplex="",ifalias="",operstate="down"} 1 # HELP node_network_mtu_bytes Network device property: mtu_bytes # TYPE node_network_mtu_bytes gauge node_network_mtu_bytes{device="docker0"} 1500 node_network_mtu_bytes{device="em1"} 1500 node_network_mtu_bytes{device="em2"} 1500 node_network_mtu_bytes{device="lo"} 65536 # HELP node_network_net_dev_group Network device property: net_dev_group # TYPE node_network_net_dev_group gauge node_network_net_dev_group{device="docker0"} 0 node_network_net_dev_group{device="em1"} 0 node_network_net_dev_group{device="em2"} 0 node_network_net_dev_group{device="lo"} 0 # HELP node_network_protocol_type Network device property: protocol_type # TYPE node_network_protocol_type gauge node_network_protocol_type{device="docker0"} 1 node_network_protocol_type{device="em1"} 1 node_network_protocol_type{device="em2"} 1 node_network_protocol_type{device="lo"} 772 # HELP node_network_receive_bytes_total Network device statistic receive_bytes. # TYPE node_network_receive_bytes_total counter node_network_receive_bytes_total{device="docker0"} 9.76575775e+08 node_network_receive_bytes_total{device="em1"} 7.22396933603e+11 node_network_receive_bytes_total{device="em2"} 0 node_network_receive_bytes_total{device="lo"} 3.4931163305e+12 # HELP node_network_receive_compressed_total Network device statistic receive_compressed. # TYPE node_network_receive_compressed_total counter node_network_receive_compressed_total{device="docker0"} 0 node_network_receive_compressed_total{device="em1"} 0 node_network_receive_compressed_total{device="em2"} 0 node_network_receive_compressed_total{device="lo"} 0 # HELP node_network_receive_drop_total Network device statistic receive_drop. # TYPE node_network_receive_drop_total counter node_network_receive_drop_total{device="docker0"} 0 node_network_receive_drop_total{device="em1"} 9.8568541e+07 node_network_receive_drop_total{device="em2"} 0 node_network_receive_drop_total{device="lo"} 0 # HELP node_network_receive_errs_total Network device statistic receive_errs. # TYPE node_network_receive_errs_total counter node_network_receive_errs_total{device="docker0"} 0 node_network_receive_errs_total{device="em1"} 0 node_network_receive_errs_total{device="em2"} 0 node_network_receive_errs_total{device="lo"} 0 # HELP node_network_receive_fifo_total Network device statistic receive_fifo. # TYPE node_network_receive_fifo_total counter node_network_receive_fifo_total{device="docker0"} 0 node_network_receive_fifo_total{device="em1"} 0 node_network_receive_fifo_total{device="em2"} 0 node_network_receive_fifo_total{device="lo"} 0 # HELP node_network_receive_frame_total Network device statistic receive_frame. # TYPE node_network_receive_frame_total counter node_network_receive_frame_total{device="docker0"} 0 node_network_receive_frame_total{device="em1"} 0 node_network_receive_frame_total{device="em2"} 0 node_network_receive_frame_total{device="lo"} 0 # HELP node_network_receive_multicast_total Network device statistic receive_multicast. # TYPE node_network_receive_multicast_total counter node_network_receive_multicast_total{device="docker0"} 0 node_network_receive_multicast_total{device="em1"} 2.199463147e+09 node_network_receive_multicast_total{device="em2"} 0 node_network_receive_multicast_total{device="lo"} 0 # HELP node_network_receive_nohandler_total Network device statistic receive_nohandler. # TYPE node_network_receive_nohandler_total counter node_network_receive_nohandler_total{device="docker0"} 0 node_network_receive_nohandler_total{device="em1"} 0 node_network_receive_nohandler_total{device="em2"} 0 node_network_receive_nohandler_total{device="lo"} 0 # HELP node_network_receive_packets_total Network device statistic receive_packets. # TYPE node_network_receive_packets_total counter node_network_receive_packets_total{device="docker0"} 1.2135063e+07 node_network_receive_packets_total{device="em1"} 5.064956404e+09 node_network_receive_packets_total{device="em2"} 0 node_network_receive_packets_total{device="lo"} 1.1982981354e+10 # HELP node_network_speed_bytes Network device property: speed_bytes # TYPE node_network_speed_bytes gauge node_network_speed_bytes{device="em1"} 1.25e+08 # HELP node_network_transmit_bytes_total Network device statistic transmit_bytes. # TYPE node_network_transmit_bytes_total counter node_network_transmit_bytes_total{device="docker0"} 1.312405267e+09 node_network_transmit_bytes_total{device="em1"} 9.60304004741e+11 node_network_transmit_bytes_total{device="em2"} 0 node_network_transmit_bytes_total{device="lo"} 3.4931163305e+12 # HELP node_network_transmit_carrier_total Network device statistic transmit_carrier. # TYPE node_network_transmit_carrier_total counter node_network_transmit_carrier_total{device="docker0"} 0 node_network_transmit_carrier_total{device="em1"} 0 node_network_transmit_carrier_total{device="em2"} 0 node_network_transmit_carrier_total{device="lo"} 0 # HELP node_network_transmit_colls_total Network device statistic transmit_colls. # TYPE node_network_transmit_colls_total counter node_network_transmit_colls_total{device="docker0"} 0 node_network_transmit_colls_total{device="em1"} 0 node_network_transmit_colls_total{device="em2"} 0 node_network_transmit_colls_total{device="lo"} 0 # HELP node_network_transmit_compressed_total Network device statistic transmit_compressed. # TYPE node_network_transmit_compressed_total counter node_network_transmit_compressed_total{device="docker0"} 0 node_network_transmit_compressed_total{device="em1"} 0 node_network_transmit_compressed_total{device="em2"} 0 node_network_transmit_compressed_total{device="lo"} 0 # HELP node_network_transmit_drop_total Network device statistic transmit_drop. # TYPE node_network_transmit_drop_total counter node_network_transmit_drop_total{device="docker0"} 0 node_network_transmit_drop_total{device="em1"} 0 node_network_transmit_drop_total{device="em2"} 0 node_network_transmit_drop_total{device="lo"} 0 # HELP node_network_transmit_errs_total Network device statistic transmit_errs. # TYPE node_network_transmit_errs_total counter node_network_transmit_errs_total{device="docker0"} 0 node_network_transmit_errs_total{device="em1"} 0 node_network_transmit_errs_total{device="em2"} 0 node_network_transmit_errs_total{device="lo"} 0 # HELP node_network_transmit_fifo_total Network device statistic transmit_fifo. # TYPE node_network_transmit_fifo_total counter node_network_transmit_fifo_total{device="docker0"} 0 node_network_transmit_fifo_total{device="em1"} 0 node_network_transmit_fifo_total{device="em2"} 0 node_network_transmit_fifo_total{device="lo"} 0 # HELP node_network_transmit_packets_total Network device statistic transmit_packets. # TYPE node_network_transmit_packets_total counter node_network_transmit_packets_total{device="docker0"} 1.2132588e+07 node_network_transmit_packets_total{device="em1"} 7.96716281e+08 node_network_transmit_packets_total{device="em2"} 0 node_network_transmit_packets_total{device="lo"} 1.1982981354e+10 # HELP node_network_transmit_queue_length Network device property: transmit_queue_length # TYPE node_network_transmit_queue_length gauge node_network_transmit_queue_length{device="docker0"} 0 node_network_transmit_queue_length{device="em1"} 1000 node_network_transmit_queue_length{device="em2"} 1000 node_network_transmit_queue_length{device="lo"} 1000 # HELP node_network_up Value is 1 if operstate is 'up', 0 otherwise. # TYPE node_network_up gauge node_network_up{device="docker0"} 0 node_network_up{device="em1"} 1 node_network_up{device="em2"} 0 node_network_up{device="lo"} 0 # HELP node_nf_conntrack_entries Number of currently allocated flow entries for connection tracking. # TYPE node_nf_conntrack_entries gauge node_nf_conntrack_entries 89 # HELP node_nf_conntrack_entries_limit Maximum size of connection tracking table. # TYPE node_nf_conntrack_entries_limit gauge node_nf_conntrack_entries_limit 262144 # HELP node_nf_conntrack_stat_drop Number of packets dropped due to conntrack failure. # TYPE node_nf_conntrack_stat_drop gauge node_nf_conntrack_stat_drop 0 # HELP node_nf_conntrack_stat_early_drop Number of dropped conntrack entries to make room for new ones, if maximum table size was reached. # TYPE node_nf_conntrack_stat_early_drop gauge node_nf_conntrack_stat_early_drop 0 # HELP node_nf_conntrack_stat_found Number of searched entries which were successful. # TYPE node_nf_conntrack_stat_found gauge node_nf_conntrack_stat_found 7.337054772e+09 # HELP node_nf_conntrack_stat_ignore Number of packets seen which are already connected to a conntrack entry. # TYPE node_nf_conntrack_stat_ignore gauge node_nf_conntrack_stat_ignore 7.375095705e+09 # HELP node_nf_conntrack_stat_insert Number of entries inserted into the list. # TYPE node_nf_conntrack_stat_insert gauge node_nf_conntrack_stat_insert 6.68337102e+08 # HELP node_nf_conntrack_stat_insert_failed Number of entries for which list insertion was attempted but failed. # TYPE node_nf_conntrack_stat_insert_failed gauge node_nf_conntrack_stat_insert_failed 0 # HELP node_nf_conntrack_stat_invalid Number of packets seen which can not be tracked. # TYPE node_nf_conntrack_stat_invalid gauge node_nf_conntrack_stat_invalid 3.442881e+06 # HELP node_nf_conntrack_stat_search_restart Number of conntrack table lookups which had to be restarted due to hashtable resizes. # TYPE node_nf_conntrack_stat_search_restart gauge node_nf_conntrack_stat_search_restart 0 # HELP node_os_info A metric with a constant '1' value labeled by build_id, id, id_like, image_id, image_version, name, pretty_name, variant, variant_id, version, version_codename, version_id. # TYPE node_os_info gauge node_os_info{build_id="",id="centos",id_like="rhel fedora",image_id="",image_version="",name="CentOS Linux",pretty_name="CentOS Linux 7 (Core)",variant="",variant_id="",version="7 (Core)",version_codename="",version_id="7"} 1 # HELP node_os_version Metric containing the major.minor part of the OS version. # TYPE node_os_version gauge node_os_version{id="centos",id_like="rhel fedora",name="CentOS Linux"} 7 # HELP node_procs_blocked Number of processes blocked waiting for I/O to complete. # TYPE node_procs_blocked gauge node_procs_blocked 0 # HELP node_procs_running Number of processes in runnable state. # TYPE node_procs_running gauge node_procs_running 1 # HELP node_rapl_core_joules_total Current RAPL core value in joules # TYPE node_rapl_core_joules_total counter node_rapl_core_joules_total{index="0",path="/sys/class/powercap/intel-rapl:0:0"} 38457.75073 # HELP node_rapl_dram_joules_total Current RAPL dram value in joules # TYPE node_rapl_dram_joules_total counter node_rapl_dram_joules_total{index="0",path="/sys/class/powercap/intel-rapl:0:1"} 55749.23814 # HELP node_rapl_package_joules_total Current RAPL package value in joules # TYPE node_rapl_package_joules_total counter node_rapl_package_joules_total{index="0",path="/sys/class/powercap/intel-rapl:0"} 98656.325014 # HELP node_schedstat_running_seconds_total Number of seconds CPU spent running a process. # TYPE node_schedstat_running_seconds_total counter node_schedstat_running_seconds_total{cpu="0"} 368151.959600709 node_schedstat_running_seconds_total{cpu="1"} 471415.095696324 node_schedstat_running_seconds_total{cpu="2"} 367462.49385682 node_schedstat_running_seconds_total{cpu="3"} 382292.022750647 node_schedstat_running_seconds_total{cpu="4"} 127365.515738924 node_schedstat_running_seconds_total{cpu="5"} 123846.995763888 node_schedstat_running_seconds_total{cpu="6"} 129867.50027358 node_schedstat_running_seconds_total{cpu="7"} 124312.53522582 # HELP node_schedstat_timeslices_total Number of timeslices executed by CPU. # TYPE node_schedstat_timeslices_total counter node_schedstat_timeslices_total{cpu="0"} 9.544604015e+09 node_schedstat_timeslices_total{cpu="1"} 1.0839645574e+10 node_schedstat_timeslices_total{cpu="2"} 1.0242242216e+10 node_schedstat_timeslices_total{cpu="3"} 9.589682543e+09 node_schedstat_timeslices_total{cpu="4"} 2.73280367e+09 node_schedstat_timeslices_total{cpu="5"} 2.426165299e+09 node_schedstat_timeslices_total{cpu="6"} 2.394366522e+09 node_schedstat_timeslices_total{cpu="7"} 2.795178893e+09 # HELP node_schedstat_waiting_seconds_total Number of seconds spent by processing waiting for this CPU. # TYPE node_schedstat_waiting_seconds_total counter node_schedstat_waiting_seconds_total{cpu="0"} 5759.060864141 node_schedstat_waiting_seconds_total{cpu="1"} 4983.513960553 node_schedstat_waiting_seconds_total{cpu="2"} 4206.922888867 node_schedstat_waiting_seconds_total{cpu="3"} 3615.695650486 node_schedstat_waiting_seconds_total{cpu="4"} 1717.95991716 node_schedstat_waiting_seconds_total{cpu="5"} 1838.640309299 node_schedstat_waiting_seconds_total{cpu="6"} 3740.066214434 node_schedstat_waiting_seconds_total{cpu="7"} 3560.919433466 # HELP node_scrape_collector_duration_seconds node_exporter: Duration of a collector scrape. # TYPE node_scrape_collector_duration_seconds gauge node_scrape_collector_duration_seconds{collector="arp"} 0.000143768 node_scrape_collector_duration_seconds{collector="bcache"} 9.252e-06 node_scrape_collector_duration_seconds{collector="bonding"} 9.719e-06 node_scrape_collector_duration_seconds{collector="btrfs"} 0.000145224 node_scrape_collector_duration_seconds{collector="conntrack"} 8.7737e-05 node_scrape_collector_duration_seconds{collector="cpu"} 0.000554867 node_scrape_collector_duration_seconds{collector="cpufreq"} 0.004883439 node_scrape_collector_duration_seconds{collector="diskstats"} 0.000232131 node_scrape_collector_duration_seconds{collector="dmi"} 9.129e-06 node_scrape_collector_duration_seconds{collector="edac"} 0.000118958 node_scrape_collector_duration_seconds{collector="entropy"} 5.8412e-05 node_scrape_collector_duration_seconds{collector="fibrechannel"} 7.316e-06 node_scrape_collector_duration_seconds{collector="filefd"} 2.1335e-05 node_scrape_collector_duration_seconds{collector="filesystem"} 0.005374649 node_scrape_collector_duration_seconds{collector="hwmon"} 0.000747921 node_scrape_collector_duration_seconds{collector="infiniband"} 6.721e-06 node_scrape_collector_duration_seconds{collector="ipvs"} 1.0174e-05 node_scrape_collector_duration_seconds{collector="loadavg"} 1.8533e-05 node_scrape_collector_duration_seconds{collector="mdadm"} 2.1706e-05 node_scrape_collector_duration_seconds{collector="meminfo"} 0.000152213 node_scrape_collector_duration_seconds{collector="netclass"} 0.00137411 node_scrape_collector_duration_seconds{collector="netdev"} 0.000165738 node_scrape_collector_duration_seconds{collector="netstat"} 0.000494259 node_scrape_collector_duration_seconds{collector="nfs"} 1.1598e-05 node_scrape_collector_duration_seconds{collector="nfsd"} 1.0237e-05 node_scrape_collector_duration_seconds{collector="nvme"} 1e-05 node_scrape_collector_duration_seconds{collector="os"} 3.6642e-05 node_scrape_collector_duration_seconds{collector="powersupplyclass"} 1.7822e-05 node_scrape_collector_duration_seconds{collector="pressure"} 2.2002e-05 node_scrape_collector_duration_seconds{collector="rapl"} 0.000280476 node_scrape_collector_duration_seconds{collector="schedstat"} 0.000101603 node_scrape_collector_duration_seconds{collector="selinux"} 1.066e-06 node_scrape_collector_duration_seconds{collector="sockstat"} 8.5933e-05 node_scrape_collector_duration_seconds{collector="softnet"} 6.4186e-05 node_scrape_collector_duration_seconds{collector="stat"} 0.000121352 node_scrape_collector_duration_seconds{collector="tapestats"} 7.865e-06 node_scrape_collector_duration_seconds{collector="textfile"} 1.5815e-05 node_scrape_collector_duration_seconds{collector="thermal_zone"} 0.00036388 node_scrape_collector_duration_seconds{collector="time"} 6.7657e-05 node_scrape_collector_duration_seconds{collector="timex"} 8.012e-06 node_scrape_collector_duration_seconds{collector="udp_queues"} 7.921e-05 node_scrape_collector_duration_seconds{collector="uname"} 5.691e-06 node_scrape_collector_duration_seconds{collector="vmstat"} 0.000100403 node_scrape_collector_duration_seconds{collector="watchdog"} 0.000122761 node_scrape_collector_duration_seconds{collector="xfs"} 0.000389064 node_scrape_collector_duration_seconds{collector="zfs"} 7.368e-06 # HELP node_scrape_collector_success node_exporter: Whether a collector succeeded. # TYPE node_scrape_collector_success gauge node_scrape_collector_success{collector="arp"} 1 node_scrape_collector_success{collector="bcache"} 1 node_scrape_collector_success{collector="bonding"} 0 node_scrape_collector_success{collector="btrfs"} 1 node_scrape_collector_success{collector="conntrack"} 1 node_scrape_collector_success{collector="cpu"} 1 node_scrape_collector_success{collector="cpufreq"} 1 node_scrape_collector_success{collector="diskstats"} 1 node_scrape_collector_success{collector="dmi"} 1 node_scrape_collector_success{collector="edac"} 1 node_scrape_collector_success{collector="entropy"} 1 node_scrape_collector_success{collector="fibrechannel"} 0 node_scrape_collector_success{collector="filefd"} 1 node_scrape_collector_success{collector="filesystem"} 1 node_scrape_collector_success{collector="hwmon"} 1 node_scrape_collector_success{collector="infiniband"} 0 node_scrape_collector_success{collector="ipvs"} 0 node_scrape_collector_success{collector="loadavg"} 1 node_scrape_collector_success{collector="mdadm"} 1 node_scrape_collector_success{collector="meminfo"} 1 node_scrape_collector_success{collector="netclass"} 1 node_scrape_collector_success{collector="netdev"} 1 node_scrape_collector_success{collector="netstat"} 1 node_scrape_collector_success{collector="nfs"} 0 node_scrape_collector_success{collector="nfsd"} 0 node_scrape_collector_success{collector="nvme"} 0 node_scrape_collector_success{collector="os"} 1 node_scrape_collector_success{collector="powersupplyclass"} 1 node_scrape_collector_success{collector="pressure"} 0 node_scrape_collector_success{collector="rapl"} 1 node_scrape_collector_success{collector="schedstat"} 1 node_scrape_collector_success{collector="selinux"} 1 node_scrape_collector_success{collector="sockstat"} 1 node_scrape_collector_success{collector="softnet"} 1 node_scrape_collector_success{collector="stat"} 1 node_scrape_collector_success{collector="tapestats"} 0 node_scrape_collector_success{collector="textfile"} 1 node_scrape_collector_success{collector="thermal_zone"} 1 node_scrape_collector_success{collector="time"} 1 node_scrape_collector_success{collector="timex"} 1 node_scrape_collector_success{collector="udp_queues"} 1 node_scrape_collector_success{collector="uname"} 1 node_scrape_collector_success{collector="vmstat"} 1 node_scrape_collector_success{collector="watchdog"} 1 node_scrape_collector_success{collector="xfs"} 1 node_scrape_collector_success{collector="zfs"} 0 # HELP node_selinux_enabled SELinux is enabled, 1 is true, 0 is false # TYPE node_selinux_enabled gauge node_selinux_enabled 0 # HELP node_sockstat_FRAG6_inuse Number of FRAG6 sockets in state inuse. # TYPE node_sockstat_FRAG6_inuse gauge node_sockstat_FRAG6_inuse 0 # HELP node_sockstat_FRAG6_memory Number of FRAG6 sockets in state memory. # TYPE node_sockstat_FRAG6_memory gauge node_sockstat_FRAG6_memory 0 # HELP node_sockstat_FRAG_inuse Number of FRAG sockets in state inuse. # TYPE node_sockstat_FRAG_inuse gauge node_sockstat_FRAG_inuse 0 # HELP node_sockstat_FRAG_memory Number of FRAG sockets in state memory. # TYPE node_sockstat_FRAG_memory gauge node_sockstat_FRAG_memory 0 # HELP node_sockstat_RAW6_inuse Number of RAW6 sockets in state inuse. # TYPE node_sockstat_RAW6_inuse gauge node_sockstat_RAW6_inuse 0 # HELP node_sockstat_RAW_inuse Number of RAW sockets in state inuse. # TYPE node_sockstat_RAW_inuse gauge node_sockstat_RAW_inuse 0 # HELP node_sockstat_TCP6_inuse Number of TCP6 sockets in state inuse. # TYPE node_sockstat_TCP6_inuse gauge node_sockstat_TCP6_inuse 17 # HELP node_sockstat_TCP_alloc Number of TCP sockets in state alloc. # TYPE node_sockstat_TCP_alloc gauge node_sockstat_TCP_alloc 39 # HELP node_sockstat_TCP_inuse Number of TCP sockets in state inuse. # TYPE node_sockstat_TCP_inuse gauge node_sockstat_TCP_inuse 20 # HELP node_sockstat_TCP_mem Number of TCP sockets in state mem. # TYPE node_sockstat_TCP_mem gauge node_sockstat_TCP_mem 5 # HELP node_sockstat_TCP_mem_bytes Number of TCP sockets in state mem_bytes. # TYPE node_sockstat_TCP_mem_bytes gauge node_sockstat_TCP_mem_bytes 20480 # HELP node_sockstat_TCP_orphan Number of TCP sockets in state orphan. # TYPE node_sockstat_TCP_orphan gauge node_sockstat_TCP_orphan 0 # HELP node_sockstat_TCP_tw Number of TCP sockets in state tw. # TYPE node_sockstat_TCP_tw gauge node_sockstat_TCP_tw 33 # HELP node_sockstat_UDP6_inuse Number of UDP6 sockets in state inuse. # TYPE node_sockstat_UDP6_inuse gauge node_sockstat_UDP6_inuse 1 # HELP node_sockstat_UDPLITE6_inuse Number of UDPLITE6 sockets in state inuse. # TYPE node_sockstat_UDPLITE6_inuse gauge node_sockstat_UDPLITE6_inuse 0 # HELP node_sockstat_UDPLITE_inuse Number of UDPLITE sockets in state inuse. # TYPE node_sockstat_UDPLITE_inuse gauge node_sockstat_UDPLITE_inuse 0 # HELP node_sockstat_UDP_inuse Number of UDP sockets in state inuse. # TYPE node_sockstat_UDP_inuse gauge node_sockstat_UDP_inuse 2 # HELP node_sockstat_UDP_mem Number of UDP sockets in state mem. # TYPE node_sockstat_UDP_mem gauge node_sockstat_UDP_mem 0 # HELP node_sockstat_UDP_mem_bytes Number of UDP sockets in state mem_bytes. # TYPE node_sockstat_UDP_mem_bytes gauge node_sockstat_UDP_mem_bytes 0 # HELP node_sockstat_sockets_used Number of IPv4 sockets in use. # TYPE node_sockstat_sockets_used gauge node_sockstat_sockets_used 190 # HELP node_softnet_backlog_len Softnet backlog status # TYPE node_softnet_backlog_len gauge node_softnet_backlog_len{cpu="0"} 0 node_softnet_backlog_len{cpu="1"} 0 node_softnet_backlog_len{cpu="2"} 0 node_softnet_backlog_len{cpu="3"} 0 node_softnet_backlog_len{cpu="4"} 0 node_softnet_backlog_len{cpu="5"} 0 node_softnet_backlog_len{cpu="6"} 0 node_softnet_backlog_len{cpu="7"} 0 # HELP node_softnet_cpu_collision_total Number of collision occur while obtaining device lock while transmitting # TYPE node_softnet_cpu_collision_total counter node_softnet_cpu_collision_total{cpu="0"} 0 node_softnet_cpu_collision_total{cpu="1"} 0 node_softnet_cpu_collision_total{cpu="2"} 0 node_softnet_cpu_collision_total{cpu="3"} 0 node_softnet_cpu_collision_total{cpu="4"} 0 node_softnet_cpu_collision_total{cpu="5"} 0 node_softnet_cpu_collision_total{cpu="6"} 0 node_softnet_cpu_collision_total{cpu="7"} 0 # HELP node_softnet_dropped_total Number of dropped packets # TYPE node_softnet_dropped_total counter node_softnet_dropped_total{cpu="0"} 0 node_softnet_dropped_total{cpu="1"} 0 node_softnet_dropped_total{cpu="2"} 0 node_softnet_dropped_total{cpu="3"} 0 node_softnet_dropped_total{cpu="4"} 0 node_softnet_dropped_total{cpu="5"} 0 node_softnet_dropped_total{cpu="6"} 0 node_softnet_dropped_total{cpu="7"} 0 # HELP node_softnet_flow_limit_count_total Number of times flow limit has been reached # TYPE node_softnet_flow_limit_count_total counter node_softnet_flow_limit_count_total{cpu="0"} 0 node_softnet_flow_limit_count_total{cpu="1"} 0 node_softnet_flow_limit_count_total{cpu="2"} 0 node_softnet_flow_limit_count_total{cpu="3"} 0 node_softnet_flow_limit_count_total{cpu="4"} 0 node_softnet_flow_limit_count_total{cpu="5"} 0 node_softnet_flow_limit_count_total{cpu="6"} 0 node_softnet_flow_limit_count_total{cpu="7"} 0 # HELP node_softnet_processed_total Number of processed packets # TYPE node_softnet_processed_total counter node_softnet_processed_total{cpu="0"} 1.891219219e+09 node_softnet_processed_total{cpu="1"} 1.596828519e+09 node_softnet_processed_total{cpu="2"} 1.835855512e+09 node_softnet_processed_total{cpu="3"} 3.917387199e+09 node_softnet_processed_total{cpu="4"} 1.212929462e+09 node_softnet_processed_total{cpu="5"} 1.295191219e+09 node_softnet_processed_total{cpu="6"} 1.465254424e+09 node_softnet_processed_total{cpu="7"} 1.68185487e+09 # HELP node_softnet_received_rps_total Number of times cpu woken up received_rps # TYPE node_softnet_received_rps_total counter node_softnet_received_rps_total{cpu="0"} 0 node_softnet_received_rps_total{cpu="1"} 0 node_softnet_received_rps_total{cpu="2"} 0 node_softnet_received_rps_total{cpu="3"} 0 node_softnet_received_rps_total{cpu="4"} 0 node_softnet_received_rps_total{cpu="5"} 0 node_softnet_received_rps_total{cpu="6"} 0 node_softnet_received_rps_total{cpu="7"} 0 # HELP node_softnet_times_squeezed_total Number of times processing packets ran out of quota # TYPE node_softnet_times_squeezed_total counter node_softnet_times_squeezed_total{cpu="0"} 1 node_softnet_times_squeezed_total{cpu="1"} 0 node_softnet_times_squeezed_total{cpu="2"} 1 node_softnet_times_squeezed_total{cpu="3"} 2 node_softnet_times_squeezed_total{cpu="4"} 1 node_softnet_times_squeezed_total{cpu="5"} 0 node_softnet_times_squeezed_total{cpu="6"} 2 node_softnet_times_squeezed_total{cpu="7"} 0 # HELP node_textfile_scrape_error 1 if there was an error opening or reading a file, 0 otherwise # TYPE node_textfile_scrape_error gauge node_textfile_scrape_error 0 # HELP node_time_clocksource_available_info Available clocksources read from '/sys/devices/system/clocksource'. # TYPE node_time_clocksource_available_info gauge node_time_clocksource_available_info{clocksource="acpi_pm",device="0"} 1 node_time_clocksource_available_info{clocksource="hpet",device="0"} 1 node_time_clocksource_available_info{clocksource="tsc",device="0"} 1 # HELP node_time_clocksource_current_info Current clocksource read from '/sys/devices/system/clocksource'. # TYPE node_time_clocksource_current_info gauge node_time_clocksource_current_info{clocksource="tsc",device="0"} 1 # HELP node_time_seconds System time in seconds since epoch (1970). # TYPE node_time_seconds gauge node_time_seconds 1.7477794325718026e+09 # HELP node_time_zone_offset_seconds System time zone offset in seconds. # TYPE node_time_zone_offset_seconds gauge node_time_zone_offset_seconds{time_zone="KST"} 32400 # HELP node_timex_estimated_error_seconds Estimated error in seconds. # TYPE node_timex_estimated_error_seconds gauge node_timex_estimated_error_seconds 0.0002 # HELP node_timex_frequency_adjustment_ratio Local clock frequency adjustment. # TYPE node_timex_frequency_adjustment_ratio gauge node_timex_frequency_adjustment_ratio 1.0000043127441407 # HELP node_timex_loop_time_constant Phase-locked loop time constant. # TYPE node_timex_loop_time_constant gauge node_timex_loop_time_constant 2 # HELP node_timex_maxerror_seconds Maximum error in seconds. # TYPE node_timex_maxerror_seconds gauge node_timex_maxerror_seconds 0.990176 # HELP node_timex_offset_seconds Time offset in between local system and reference clock. # TYPE node_timex_offset_seconds gauge node_timex_offset_seconds 0 # HELP node_timex_pps_calibration_total Pulse per second count of calibration intervals. # TYPE node_timex_pps_calibration_total counter node_timex_pps_calibration_total 0 # HELP node_timex_pps_error_total Pulse per second count of calibration errors. # TYPE node_timex_pps_error_total counter node_timex_pps_error_total 0 # HELP node_timex_pps_frequency_hertz Pulse per second frequency. # TYPE node_timex_pps_frequency_hertz gauge node_timex_pps_frequency_hertz 0 # HELP node_timex_pps_jitter_seconds Pulse per second jitter. # TYPE node_timex_pps_jitter_seconds gauge node_timex_pps_jitter_seconds 0 # HELP node_timex_pps_jitter_total Pulse per second count of jitter limit exceeded events. # TYPE node_timex_pps_jitter_total counter node_timex_pps_jitter_total 0 # HELP node_timex_pps_shift_seconds Pulse per second interval duration. # TYPE node_timex_pps_shift_seconds gauge node_timex_pps_shift_seconds 0 # HELP node_timex_pps_stability_exceeded_total Pulse per second count of stability limit exceeded events. # TYPE node_timex_pps_stability_exceeded_total counter node_timex_pps_stability_exceeded_total 0 # HELP node_timex_pps_stability_hertz Pulse per second stability, average of recent frequency changes. # TYPE node_timex_pps_stability_hertz gauge node_timex_pps_stability_hertz 0 # HELP node_timex_status Value of the status array bits. # TYPE node_timex_status gauge node_timex_status 0 # HELP node_timex_sync_status Is clock synchronized to a reliable server (1 = yes, 0 = no). # TYPE node_timex_sync_status gauge node_timex_sync_status 1 # HELP node_timex_tai_offset_seconds International Atomic Time (TAI) offset. # TYPE node_timex_tai_offset_seconds gauge node_timex_tai_offset_seconds 0 # HELP node_timex_tick_seconds Seconds between clock ticks. # TYPE node_timex_tick_seconds gauge node_timex_tick_seconds 0.01 # HELP node_udp_queues Number of allocated memory in the kernel for UDP datagrams in bytes. # TYPE node_udp_queues gauge node_udp_queues{ip="v4",queue="rx"} 0 node_udp_queues{ip="v4",queue="tx"} 0 node_udp_queues{ip="v6",queue="rx"} 0 node_udp_queues{ip="v6",queue="tx"} 0 # HELP node_uname_info Labeled system information as provided by the uname system call. # TYPE node_uname_info gauge node_uname_info{domainname="(none)",machine="x86_64",nodename="redisgate",release="3.10.0-862.3.2.el7.x86_64",sysname="Linux",version="#1 SMP Mon May 21 23:36:36 UTC 2018"} 1 # HELP node_vmstat_pgfault /proc/vmstat information field pgfault. # TYPE node_vmstat_pgfault untyped node_vmstat_pgfault 1.1018373859e+10 # HELP node_vmstat_pgmajfault /proc/vmstat information field pgmajfault. # TYPE node_vmstat_pgmajfault untyped node_vmstat_pgmajfault 3.1975988e+07 # HELP node_vmstat_pgpgin /proc/vmstat information field pgpgin. # TYPE node_vmstat_pgpgin untyped node_vmstat_pgpgin 3.5310266745e+10 # HELP node_vmstat_pgpgout /proc/vmstat information field pgpgout. # TYPE node_vmstat_pgpgout untyped node_vmstat_pgpgout 3.9227318197e+10 # HELP node_vmstat_pswpin /proc/vmstat information field pswpin. # TYPE node_vmstat_pswpin untyped node_vmstat_pswpin 1.39717649e+08 # HELP node_vmstat_pswpout /proc/vmstat information field pswpout. # TYPE node_vmstat_pswpout untyped node_vmstat_pswpout 6.0051985e+07 # HELP node_watchdog_bootstatus Value of /sys/class/watchdog/<watchdog>/bootstatus # TYPE node_watchdog_bootstatus gauge node_watchdog_bootstatus{name="watchdog0"} 0 # HELP node_watchdog_info Info of /sys/class/watchdog/<watchdog> # TYPE node_watchdog_info gauge node_watchdog_info{identity="iTCO_wdt",name="watchdog0",options="",pretimeout_governor="",state="inactive",status=""} 1 # HELP node_watchdog_nowayout Value of /sys/class/watchdog/<watchdog>/nowayout # TYPE node_watchdog_nowayout gauge node_watchdog_nowayout{name="watchdog0"} 0 # HELP node_watchdog_timeleft_seconds Value of /sys/class/watchdog/<watchdog>/timeleft # TYPE node_watchdog_timeleft_seconds gauge node_watchdog_timeleft_seconds{name="watchdog0"} 2 # HELP node_watchdog_timeout_seconds Value of /sys/class/watchdog/<watchdog>/timeout # TYPE node_watchdog_timeout_seconds gauge node_watchdog_timeout_seconds{name="watchdog0"} 30 # HELP node_xfs_allocation_btree_compares_total Number of allocation B-tree compares for a filesystem. # TYPE node_xfs_allocation_btree_compares_total counter node_xfs_allocation_btree_compares_total{device="sda1"} 0 node_xfs_allocation_btree_compares_total{device="sda2"} 0 node_xfs_allocation_btree_compares_total{device="sdb1"} 0 # HELP node_xfs_allocation_btree_lookups_total Number of allocation B-tree lookups for a filesystem. # TYPE node_xfs_allocation_btree_lookups_total counter node_xfs_allocation_btree_lookups_total{device="sda1"} 0 node_xfs_allocation_btree_lookups_total{device="sda2"} 0 node_xfs_allocation_btree_lookups_total{device="sdb1"} 0 # HELP node_xfs_allocation_btree_records_deleted_total Number of allocation B-tree records deleted for a filesystem. # TYPE node_xfs_allocation_btree_records_deleted_total counter node_xfs_allocation_btree_records_deleted_total{device="sda1"} 0 node_xfs_allocation_btree_records_deleted_total{device="sda2"} 0 node_xfs_allocation_btree_records_deleted_total{device="sdb1"} 0 # HELP node_xfs_allocation_btree_records_inserted_total Number of allocation B-tree records inserted for a filesystem. # TYPE node_xfs_allocation_btree_records_inserted_total counter node_xfs_allocation_btree_records_inserted_total{device="sda1"} 0 node_xfs_allocation_btree_records_inserted_total{device="sda2"} 0 node_xfs_allocation_btree_records_inserted_total{device="sdb1"} 0 # HELP node_xfs_block_map_btree_compares_total Number of block map B-tree compares for a filesystem. # TYPE node_xfs_block_map_btree_compares_total counter node_xfs_block_map_btree_compares_total{device="sda1"} 0 node_xfs_block_map_btree_compares_total{device="sda2"} 0 node_xfs_block_map_btree_compares_total{device="sdb1"} 0 # HELP node_xfs_block_map_btree_lookups_total Number of block map B-tree lookups for a filesystem. # TYPE node_xfs_block_map_btree_lookups_total counter node_xfs_block_map_btree_lookups_total{device="sda1"} 0 node_xfs_block_map_btree_lookups_total{device="sda2"} 0 node_xfs_block_map_btree_lookups_total{device="sdb1"} 0 # HELP node_xfs_block_map_btree_records_deleted_total Number of block map B-tree records deleted for a filesystem. # TYPE node_xfs_block_map_btree_records_deleted_total counter node_xfs_block_map_btree_records_deleted_total{device="sda1"} 0 node_xfs_block_map_btree_records_deleted_total{device="sda2"} 0 node_xfs_block_map_btree_records_deleted_total{device="sdb1"} 0 # HELP node_xfs_block_map_btree_records_inserted_total Number of block map B-tree records inserted for a filesystem. # TYPE node_xfs_block_map_btree_records_inserted_total counter node_xfs_block_map_btree_records_inserted_total{device="sda1"} 0 node_xfs_block_map_btree_records_inserted_total{device="sda2"} 0 node_xfs_block_map_btree_records_inserted_total{device="sdb1"} 0 # HELP node_xfs_block_mapping_extent_list_compares_total Number of extent list compares for a filesystem. # TYPE node_xfs_block_mapping_extent_list_compares_total counter node_xfs_block_mapping_extent_list_compares_total{device="sda1"} 0 node_xfs_block_mapping_extent_list_compares_total{device="sda2"} 0 node_xfs_block_mapping_extent_list_compares_total{device="sdb1"} 0 # HELP node_xfs_block_mapping_extent_list_deletions_total Number of extent list deletions for a filesystem. # TYPE node_xfs_block_mapping_extent_list_deletions_total counter node_xfs_block_mapping_extent_list_deletions_total{device="sda1"} 18 node_xfs_block_mapping_extent_list_deletions_total{device="sda2"} 3.531692e+06 node_xfs_block_mapping_extent_list_deletions_total{device="sdb1"} 2.17156518e+08 # HELP node_xfs_block_mapping_extent_list_insertions_total Number of extent list insertions for a filesystem. # TYPE node_xfs_block_mapping_extent_list_insertions_total counter node_xfs_block_mapping_extent_list_insertions_total{device="sda1"} 15 node_xfs_block_mapping_extent_list_insertions_total{device="sda2"} 2.805218e+06 node_xfs_block_mapping_extent_list_insertions_total{device="sdb1"} 2.13392369e+08 # HELP node_xfs_block_mapping_extent_list_lookups_total Number of extent list lookups for a filesystem. # TYPE node_xfs_block_mapping_extent_list_lookups_total counter node_xfs_block_mapping_extent_list_lookups_total{device="sda1"} 2632 node_xfs_block_mapping_extent_list_lookups_total{device="sda2"} 6.11165428e+08 node_xfs_block_mapping_extent_list_lookups_total{device="sdb1"} 2.969904087e+09 # HELP node_xfs_block_mapping_reads_total Number of block map for read operations for a filesystem. # TYPE node_xfs_block_mapping_reads_total counter node_xfs_block_mapping_reads_total{device="sda1"} 1130 node_xfs_block_mapping_reads_total{device="sda2"} 1.805973296e+09 node_xfs_block_mapping_reads_total{device="sdb1"} 2.002728094e+09 # HELP node_xfs_block_mapping_unmaps_total Number of block unmaps (deletes) for a filesystem. # TYPE node_xfs_block_mapping_unmaps_total counter node_xfs_block_mapping_unmaps_total{device="sda1"} 23 node_xfs_block_mapping_unmaps_total{device="sda2"} 5.290601e+06 node_xfs_block_mapping_unmaps_total{device="sdb1"} 4.15346267e+08 # HELP node_xfs_block_mapping_writes_total Number of block map for write operations for a filesystem. # TYPE node_xfs_block_mapping_writes_total counter node_xfs_block_mapping_writes_total{device="sda1"} 1479 node_xfs_block_mapping_writes_total{device="sda2"} 3.094792496e+09 node_xfs_block_mapping_writes_total{device="sdb1"} 5.42976937e+08 # HELP node_xfs_directory_operation_create_total Number of times a new directory entry was created for a filesystem. # TYPE node_xfs_directory_operation_create_total counter node_xfs_directory_operation_create_total{device="sda1"} 21 node_xfs_directory_operation_create_total{device="sda2"} 7.921379e+06 node_xfs_directory_operation_create_total{device="sdb1"} 4.30027685e+08 # HELP node_xfs_directory_operation_getdents_total Number of times the directory getdents operation was performed for a filesystem. # TYPE node_xfs_directory_operation_getdents_total counter node_xfs_directory_operation_getdents_total{device="sda1"} 1090 node_xfs_directory_operation_getdents_total{device="sda2"} 1.14988103e+08 node_xfs_directory_operation_getdents_total{device="sdb1"} 6.2206619e+07 # HELP node_xfs_directory_operation_lookup_total Number of file name directory lookups which miss the operating systems directory name lookup cache. # TYPE node_xfs_directory_operation_lookup_total counter node_xfs_directory_operation_lookup_total{device="sda1"} 69 node_xfs_directory_operation_lookup_total{device="sda2"} 4.74794457e+08 node_xfs_directory_operation_lookup_total{device="sdb1"} 8.72517591e+08 # HELP node_xfs_directory_operation_remove_total Number of times an existing directory entry was created for a filesystem. # TYPE node_xfs_directory_operation_remove_total counter node_xfs_directory_operation_remove_total{device="sda1"} 14 node_xfs_directory_operation_remove_total{device="sda2"} 7.512649e+06 node_xfs_directory_operation_remove_total{device="sdb1"} 4.27975183e+08 # HELP node_xfs_extent_allocation_blocks_allocated_total Number of blocks allocated for a filesystem. # TYPE node_xfs_extent_allocation_blocks_allocated_total counter node_xfs_extent_allocation_blocks_allocated_total{device="sda1"} 21079 node_xfs_extent_allocation_blocks_allocated_total{device="sda2"} 8.39633527e+08 node_xfs_extent_allocation_blocks_allocated_total{device="sdb1"} 7.19219549e+08 # HELP node_xfs_extent_allocation_blocks_freed_total Number of blocks freed for a filesystem. # TYPE node_xfs_extent_allocation_blocks_freed_total counter node_xfs_extent_allocation_blocks_freed_total{device="sda1"} 13799 node_xfs_extent_allocation_blocks_freed_total{device="sda2"} 8.28722096e+08 node_xfs_extent_allocation_blocks_freed_total{device="sdb1"} 6.44720776e+08 # HELP node_xfs_extent_allocation_extents_allocated_total Number of extents allocated for a filesystem. # TYPE node_xfs_extent_allocation_extents_allocated_total counter node_xfs_extent_allocation_extents_allocated_total{device="sda1"} 15 node_xfs_extent_allocation_extents_allocated_total{device="sda2"} 2.845816e+06 node_xfs_extent_allocation_extents_allocated_total{device="sdb1"} 2.16337957e+08 # HELP node_xfs_extent_allocation_extents_freed_total Number of extents freed for a filesystem. # TYPE node_xfs_extent_allocation_extents_freed_total counter node_xfs_extent_allocation_extents_freed_total{device="sda1"} 8 node_xfs_extent_allocation_extents_freed_total{device="sda2"} 2.441919e+06 node_xfs_extent_allocation_extents_freed_total{device="sdb1"} 2.14466509e+08 # HELP node_xfs_inode_operation_attempts_total Number of times the OS looked for an XFS inode in the inode cache. # TYPE node_xfs_inode_operation_attempts_total counter node_xfs_inode_operation_attempts_total{device="sda1"} 38 node_xfs_inode_operation_attempts_total{device="sda2"} 4.70705333e+08 node_xfs_inode_operation_attempts_total{device="sdb1"} 6.66902491e+08 # HELP node_xfs_inode_operation_attribute_changes_total Number of times the OS explicitly changed the attributes of an XFS inode. # TYPE node_xfs_inode_operation_attribute_changes_total counter node_xfs_inode_operation_attribute_changes_total{device="sda1"} 28 node_xfs_inode_operation_attribute_changes_total{device="sda2"} 2.036236e+06 node_xfs_inode_operation_attribute_changes_total{device="sdb1"} 9.00897987e+08 # HELP node_xfs_inode_operation_duplicates_total Number of times the OS tried to add a missing XFS inode to the inode cache, but found it had already been added by another process. # TYPE node_xfs_inode_operation_duplicates_total counter node_xfs_inode_operation_duplicates_total{device="sda1"} 0 node_xfs_inode_operation_duplicates_total{device="sda2"} 0 node_xfs_inode_operation_duplicates_total{device="sdb1"} 0 # HELP node_xfs_inode_operation_found_total Number of times the OS looked for and found an XFS inode in the inode cache. # TYPE node_xfs_inode_operation_found_total counter node_xfs_inode_operation_found_total{device="sda1"} 4 node_xfs_inode_operation_found_total{device="sda2"} 1.15128733e+08 node_xfs_inode_operation_found_total{device="sdb1"} 3.5946814e+07 # HELP node_xfs_inode_operation_missed_total Number of times the OS looked for an XFS inode in the cache, but did not find it. # TYPE node_xfs_inode_operation_missed_total counter node_xfs_inode_operation_missed_total{device="sda1"} 34 node_xfs_inode_operation_missed_total{device="sda2"} 3.555766e+08 node_xfs_inode_operation_missed_total{device="sdb1"} 6.30955677e+08 # HELP node_xfs_inode_operation_reclaims_total Number of times the OS reclaimed an XFS inode from the inode cache to free memory for another purpose. # TYPE node_xfs_inode_operation_reclaims_total counter node_xfs_inode_operation_reclaims_total{device="sda1"} 5 node_xfs_inode_operation_reclaims_total{device="sda2"} 3.55269594e+08 node_xfs_inode_operation_reclaims_total{device="sdb1"} 6.30659457e+08 # HELP node_xfs_inode_operation_recycled_total Number of times the OS found an XFS inode in the cache, but could not use it as it was being recycled. # TYPE node_xfs_inode_operation_recycled_total counter node_xfs_inode_operation_recycled_total{device="sda1"} 0 node_xfs_inode_operation_recycled_total{device="sda2"} 326 node_xfs_inode_operation_recycled_total{device="sdb1"} 28381 # HELP node_xfs_read_calls_total Number of read(2) system calls made to files in a filesystem. # TYPE node_xfs_read_calls_total counter node_xfs_read_calls_total{device="sda1"} 1120 node_xfs_read_calls_total{device="sda2"} 1.656952942e+09 node_xfs_read_calls_total{device="sdb1"} 9141 # HELP node_xfs_vnode_active_total Number of vnodes not on free lists for a filesystem. # TYPE node_xfs_vnode_active_total counter node_xfs_vnode_active_total{device="sda1"} 29 node_xfs_vnode_active_total{device="sda2"} 307006 node_xfs_vnode_active_total{device="sdb1"} 296220 # HELP node_xfs_vnode_allocate_total Number of times vn_alloc called for a filesystem. # TYPE node_xfs_vnode_allocate_total counter node_xfs_vnode_allocate_total{device="sda1"} 0 node_xfs_vnode_allocate_total{device="sda2"} 0 node_xfs_vnode_allocate_total{device="sdb1"} 0 # HELP node_xfs_vnode_get_total Number of times vn_get called for a filesystem. # TYPE node_xfs_vnode_get_total counter node_xfs_vnode_get_total{device="sda1"} 0 node_xfs_vnode_get_total{device="sda2"} 0 node_xfs_vnode_get_total{device="sdb1"} 0 # HELP node_xfs_vnode_hold_total Number of times vn_hold called for a filesystem. # TYPE node_xfs_vnode_hold_total counter node_xfs_vnode_hold_total{device="sda1"} 0 node_xfs_vnode_hold_total{device="sda2"} 0 node_xfs_vnode_hold_total{device="sdb1"} 0 # HELP node_xfs_vnode_reclaim_total Number of times vn_reclaim called for a filesystem. # TYPE node_xfs_vnode_reclaim_total counter node_xfs_vnode_reclaim_total{device="sda1"} 9 node_xfs_vnode_reclaim_total{device="sda2"} 3.58137017e+08 node_xfs_vnode_reclaim_total{device="sdb1"} 6.3312549e+08 # HELP node_xfs_vnode_release_total Number of times vn_rele called for a filesystem. # TYPE node_xfs_vnode_release_total counter node_xfs_vnode_release_total{device="sda1"} 9 node_xfs_vnode_release_total{device="sda2"} 3.58137017e+08 node_xfs_vnode_release_total{device="sdb1"} 6.3312549e+08 # HELP node_xfs_vnode_remove_total Number of times vn_remove called for a filesystem. # TYPE node_xfs_vnode_remove_total counter node_xfs_vnode_remove_total{device="sda1"} 9 node_xfs_vnode_remove_total{device="sda2"} 3.58137017e+08 node_xfs_vnode_remove_total{device="sdb1"} 6.3312549e+08 # HELP node_xfs_write_calls_total Number of write(2) system calls made to files in a filesystem. # TYPE node_xfs_write_calls_total counter node_xfs_write_calls_total{device="sda1"} 1462 node_xfs_write_calls_total{device="sda2"} 3.095407677e+09 node_xfs_write_calls_total{device="sdb1"} 3.25601889e+08 # HELP process_cpu_seconds_total Total user and system CPU time spent in seconds. # TYPE process_cpu_seconds_total counter process_cpu_seconds_total 695.8 # HELP process_max_fds Maximum number of open file descriptors. # TYPE process_max_fds gauge process_max_fds 4096 # HELP process_network_receive_bytes_total Number of bytes received by the process over the network. # TYPE process_network_receive_bytes_total counter process_network_receive_bytes_total 3.665852351531e+12 # HELP process_network_transmit_bytes_total Number of bytes sent by the process over the network. # TYPE process_network_transmit_bytes_total counter process_network_transmit_bytes_total 4.419622976386e+12 # HELP process_open_fds Number of open file descriptors. # TYPE process_open_fds gauge process_open_fds 9 # HELP process_resident_memory_bytes Resident memory size in bytes. # TYPE process_resident_memory_bytes gauge process_resident_memory_bytes 1.6412672e+07 # HELP process_start_time_seconds Start time of the process since unix epoch in seconds. # TYPE process_start_time_seconds gauge process_start_time_seconds 1.74764457865e+09 # HELP process_virtual_memory_bytes Virtual memory size in bytes. # TYPE process_virtual_memory_bytes gauge process_virtual_memory_bytes 1.272868864e+09 # HELP process_virtual_memory_max_bytes Maximum amount of virtual memory available in bytes. # TYPE process_virtual_memory_max_bytes gauge process_virtual_memory_max_bytes 1.8446744073709552e+19 # HELP promhttp_metric_handler_errors_total Total number of internal errors encountered by the promhttp metric handler. # TYPE promhttp_metric_handler_errors_total counter promhttp_metric_handler_errors_total{cause="encoding"} 0 promhttp_metric_handler_errors_total{cause="gathering"} 0 # HELP promhttp_metric_handler_requests_in_flight Current number of scrapes being served. # TYPE promhttp_metric_handler_requests_in_flight gauge promhttp_metric_handler_requests_in_flight 1 # HELP promhttp_metric_handler_requests_total Total number of scrapes by HTTP status code. # TYPE promhttp_metric_handler_requests_total counter promhttp_metric_handler_requests_total{code="200"} 40737 promhttp_metric_handler_requests_total{code="500"} 0 promhttp_metric_handler_requests_total{code="503"} 0

Redis Exporter 전체 데이터 📖

http://IP:9121/metrics 실행했을 때 나오는 데이터입니다.
Redis Exporter 전체 데이터: 36K, 670라인
